diffeq::core::composable::IntegratorDecorator< S > Class Template Reference

Base decorator interface for integrator enhancements. More...

#include <integrator_decorator.hpp>

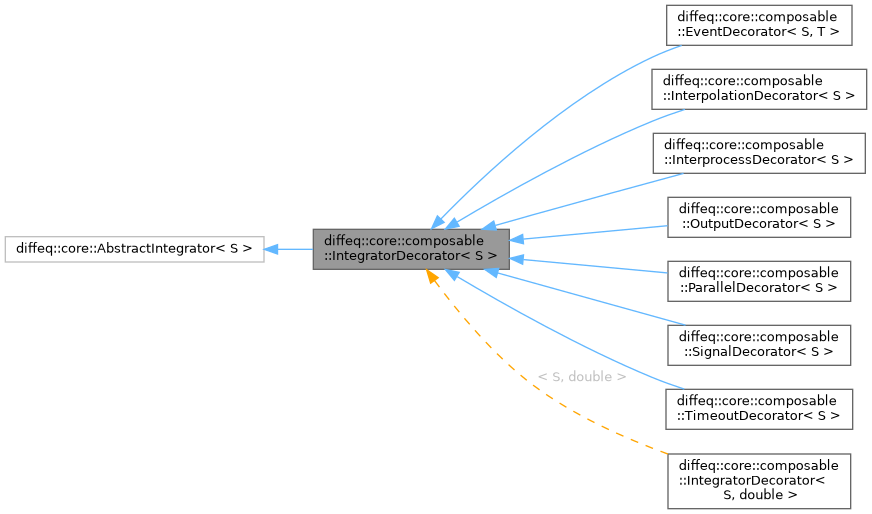

Inheritance diagram for diffeq::core::composable::IntegratorDecorator< S >:

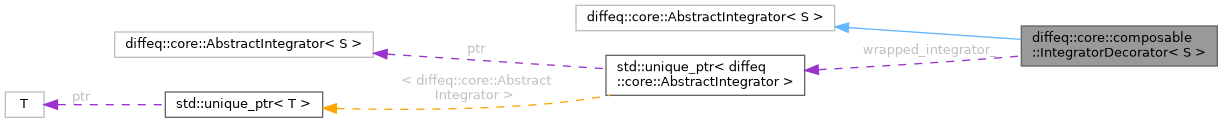

Collaboration diagram for diffeq::core::composable::IntegratorDecorator< S >:

Public Types
using	base_type = AbstractIntegrator< S >
using	state_type = typename base_type::state_type
using	time_type = typename base_type::time_type
using	system_function = typename base_type::system_function
Public Types inherited from diffeq::core::AbstractIntegrator< S >
using	state_type = S
using	time_type = typename S::value_type
using	value_type = typename S::value_type
using	system_function = std::function< void(time_type, const state_type &, state_type &)>

Public Member Functions
	IntegratorDecorator (std::unique_ptr< base_type > integrator)
	Construct decorator wrapping another integrator.
virtual	~IntegratorDecorator ()=default
	Virtual destructor for proper cleanup.
void	step (state_type &state, time_type dt) override
void	integrate (state_type &state, time_type dt, time_type end_time) override
time_type	current_time () const override
void	set_time (time_type t) override
void	set_system (system_function sys) override
base_type &	wrapped ()
	Access to wrapped integrator for advanced use.
const base_type &	wrapped () const
bool	has_wrapped_integrator () const
	Check if wrapped integrator exists.
Public Member Functions inherited from diffeq::core::AbstractIntegrator< S >
	AbstractIntegrator (system_function sys)
time_type	current_time () const
void	set_time (time_type t)
void	set_system (system_function sys)

Protected Attributes
std::unique_ptr< base_type >	wrapped_integrator_
Protected Attributes inherited from diffeq::core::AbstractIntegrator< S >
system_function	sys_
time_type	current_time_

Additional Inherited Members
Protected Member Functions inherited from diffeq::core::AbstractIntegrator< S >
void	advance_time (time_type dt)

Detailed Description

template<system_state S>
class diffeq::core::composable::IntegratorDecorator< S >

Base decorator interface for integrator enhancements.

This provides the foundation for the decorator pattern, allowing facilities to be stacked independently without tight coupling.

Design Principles:

• High Cohesion: Each decorator focuses on single responsibility
• Low Coupling: Decorators combine without dependencies
• Delegation: Forwards calls to wrapped integrator by default
• Extensibility: Easy to add new decorators without modification

Definition at line 22 of file integrator_decorator.hpp.

Member Typedef Documentation

base_type

template<system_state S>

using diffeq::core::composable::IntegratorDecorator< S >::base_type = AbstractIntegrator<S>

Definition at line 24 of file integrator_decorator.hpp.

state_type

template<system_state S>

using diffeq::core::composable::IntegratorDecorator< S >::state_type = typename base_type::state_type

Definition at line 25 of file integrator_decorator.hpp.

system_function

template<system_state S>

using diffeq::core::composable::IntegratorDecorator< S >::system_function = typename base_type::system_function

Definition at line 27 of file integrator_decorator.hpp.

time_type

template<system_state S>

using diffeq::core::composable::IntegratorDecorator< S >::time_type = typename base_type::time_type

Definition at line 26 of file integrator_decorator.hpp.

Constructor & Destructor Documentation

IntegratorDecorator()

template<system_state S>

diffeq::core::composable::IntegratorDecorator< S >::IntegratorDecorator ( std::unique_ptr< base_type >  integrator )

inlineexplicit

Construct decorator wrapping another integrator.

Parameters

integrator

The integrator to wrap (takes ownership)

Definition at line 37 of file integrator_decorator.hpp.

Member Function Documentation

current_time()

template<system_state S>

time_type diffeq::core::composable::IntegratorDecorator< S >::current_time ( ) const

inlineoverride

Definition at line 54 of file integrator_decorator.hpp.

has_wrapped_integrator()

template<system_state S>

bool diffeq::core::composable::IntegratorDecorator< S >::has_wrapped_integrator ( ) const

inline

Check if wrapped integrator exists.

Returns

true if wrapped integrator is valid

Definition at line 79 of file integrator_decorator.hpp.

integrate()

template<system_state S>

void diffeq::core::composable::IntegratorDecorator< S >::integrate ( state_type &  state, time_type  dt, time_type  end_time  )

inlineoverridevirtual

Reimplemented from diffeq::core::AbstractIntegrator< S >.

Definition at line 50 of file integrator_decorator.hpp.

set_system()

template<system_state S>

void diffeq::core::composable::IntegratorDecorator< S >::set_system ( system_function  sys )

inlineoverride

Definition at line 63 of file integrator_decorator.hpp.

set_time()

template<system_state S>

void diffeq::core::composable::IntegratorDecorator< S >::set_time ( time_type  t )

inlineoverride

Definition at line 58 of file integrator_decorator.hpp.

step()

template<system_state S>

void diffeq::core::composable::IntegratorDecorator< S >::step ( state_type &  state, time_type  dt  )

inlineoverridevirtual

Implements diffeq::core::AbstractIntegrator< S >.

Definition at line 46 of file integrator_decorator.hpp.

wrapped() [1/2]

template<system_state S>

base_type & diffeq::core::composable::IntegratorDecorator< S >::wrapped ( )

inline

Access to wrapped integrator for advanced use.

Returns

Reference to the wrapped integrator

Definition at line 72 of file integrator_decorator.hpp.

wrapped() [2/2]

template<system_state S>

const base_type & diffeq::core::composable::IntegratorDecorator< S >::wrapped ( ) const

inline

Definition at line 73 of file integrator_decorator.hpp.

Member Data Documentation

wrapped_integrator_

template<system_state S>

std::unique_ptr<base_type> diffeq::core::composable::IntegratorDecorator< S >::wrapped_integrator_

protected

Definition at line 30 of file integrator_decorator.hpp.

---

The documentation for this class was generated from the following file:

• include/core/composable/integrator_decorator.hpp
