Interpolation decorator - adds dense output capabilities to any integrator. More...

#include <interpolation_decorator.hpp>

Inheritance diagram for diffeq::core::composable::InterpolationDecorator< S >:

[legend]

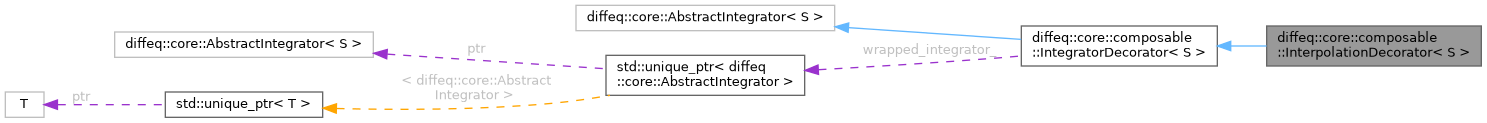

Collaboration diagram for diffeq::core::composable::InterpolationDecorator< S >:

[legend]

Public Member Functions
	InterpolationDecorator (std::unique_ptr< AbstractIntegrator< S > > integrator, InterpolationConfig config={})
	Construct interpolation decorator.

void	step (typename IntegratorDecorator< S >::state_type &state, typename IntegratorDecorator< S >::time_type dt) override
	Override step to record state history.

void	integrate (typename IntegratorDecorator< S >::state_type &state, typename IntegratorDecorator< S >::time_type dt, typename IntegratorDecorator< S >::time_type end_time) override
	Override integrate to maintain history during integration.

S	interpolate_at (typename IntegratorDecorator< S >::time_type t)
	Get interpolated state at arbitrary time.

std::vector< S >	interpolate_at_multiple (const std::vector< typename IntegratorDecorator< S >::time_type > &time_points)
	Get interpolated states at multiple time points.

std::pair< std::vector< typename IntegratorDecorator< S >::time_type >, std::vector< S > >	get_dense_output (typename IntegratorDecorator< S >::time_type start_time, typename IntegratorDecorator< S >::time_type end_time, size_t num_points)
	Get dense output over time interval.

const InterpolationStats &	get_statistics () const
	Get current interpolation statistics.

void	reset_statistics ()
	Reset interpolation statistics.

std::pair< typename IntegratorDecorator< S >::time_type, typename IntegratorDecorator< S >::time_type >	get_time_bounds () const
	Get time bounds of available history.

void	clear_history ()
	Clear all history.

size_t	get_history_size () const
	Get number of stored history points.

InterpolationConfig &	config ()
	Access and modify interpolation configuration.

const InterpolationConfig &	config () const

Public Member Functions inherited from diffeq::core::composable::IntegratorDecorator< S >
	IntegratorDecorator (std::unique_ptr< base_type > integrator)
	Construct decorator wrapping another integrator.

virtual	~IntegratorDecorator ()=default
	Virtual destructor for proper cleanup.

void	step (state_type &state, time_type dt) override

void	integrate (state_type &state, time_type dt, time_type end_time) override

time_type	current_time () const override

void	set_time (time_type t) override

void	set_system (system_function sys) override

base_type &	wrapped ()
	Access to wrapped integrator for advanced use.

const base_type &	wrapped () const

bool	has_wrapped_integrator () const
	Check if wrapped integrator exists.

Public Member Functions inherited from diffeq::core::AbstractIntegrator< S >
	AbstractIntegrator (system_function sys)

time_type	current_time () const

void	set_time (time_type t)

void	set_system (system_function sys)

Additional Inherited Members
Public Types inherited from diffeq::core::composable::IntegratorDecorator< S >
using	base_type = AbstractIntegrator< S >

using	state_type = typename base_type::state_type

using	time_type = typename base_type::time_type

using	system_function = typename base_type::system_function

Public Types inherited from diffeq::core::AbstractIntegrator< S >
using	state_type = S

using	time_type = typename S::value_type

using	value_type = typename S::value_type

using	system_function = std::function< void(time_type, const state_type &, state_type &)>

Protected Member Functions inherited from diffeq::core::AbstractIntegrator< S >
void	advance_time (time_type dt)

Protected Attributes inherited from diffeq::core::composable::IntegratorDecorator< S >
std::unique_ptr< base_type >	wrapped_integrator_

Protected Attributes inherited from diffeq::core::AbstractIntegrator< S >
system_function	sys_

time_type	current_time_

Detailed Description

template<system_state S>
class diffeq::core::composable::InterpolationDecorator< S >

Interpolation decorator - adds dense output capabilities to any integrator.

This decorator provides comprehensive interpolation capabilities with the following features:

Dense output with multiple interpolation methods
Adaptive sampling and history management
Memory-efficient compression
Query interface for arbitrary time points

Key Design Principles:

Single Responsibility: ONLY handles interpolation and dense output
Efficient: Minimal memory overhead with compression
Flexible: Multiple interpolation methods
Robust: Handles edge cases and extrapolation

Definition at line 226 of file interpolation_decorator.hpp.

Constructor & Destructor Documentation

◆ InterpolationDecorator()

template<system_state S>

diffeq::core::composable::InterpolationDecorator< S >::InterpolationDecorator	(	std::unique_ptr< AbstractIntegrator< S > >	integrator,
		InterpolationConfig	config = `{}`
	)

inlineexplicit

Construct interpolation decorator.

Parameters

integrator	The integrator to wrap
config	Interpolation configuration (validated on construction)

Exceptions

std::invalid_argument if config is invalid

Definition at line 243 of file interpolation_decorator.hpp.

Member Function Documentation

◆ clear_history()

template<system_state S>

void diffeq::core::composable::InterpolationDecorator< S >::clear_history ( )

inline

Clear all history.

Definition at line 396 of file interpolation_decorator.hpp.

◆ config() [1/2]

template<system_state S>

InterpolationConfig & diffeq::core::composable::InterpolationDecorator< S >::config ( )

inline

Access and modify interpolation configuration.

Definition at line 413 of file interpolation_decorator.hpp.

◆ config() [2/2]

template<system_state S>

const InterpolationConfig & diffeq::core::composable::InterpolationDecorator< S >::config ( ) const

inline

Definition at line 414 of file interpolation_decorator.hpp.

◆ get_dense_output()

template<system_state S>

std::pair< std::vector< typename IntegratorDecorator< S >::time_type >, std::vector< S > > diffeq::core::composable::InterpolationDecorator< S >::get_dense_output	(	typename IntegratorDecorator< S >::time_type	start_time,
		typename IntegratorDecorator< S >::time_type	end_time,
		size_t	num_points
	)

inline

Get dense output over time interval.

Parameters

start_time	Start time
end_time	End time
num_points	Number of interpolation points

Returns: Pair of time vector and state vector

Definition at line 345 of file interpolation_decorator.hpp.

Here is the call graph for this function:

◆ get_history_size()

template<system_state S>

size_t diffeq::core::composable::InterpolationDecorator< S >::get_history_size ( ) const

inline

Get number of stored history points.

Definition at line 405 of file interpolation_decorator.hpp.

◆ get_statistics()

template<system_state S>

const InterpolationStats & diffeq::core::composable::InterpolationDecorator< S >::get_statistics ( ) const

inline

Get current interpolation statistics.

Definition at line 370 of file interpolation_decorator.hpp.

◆ get_time_bounds()

template<system_state S>

std::pair< typename IntegratorDecorator< S >::time_type, typename IntegratorDecorator< S >::time_type > diffeq::core::composable::InterpolationDecorator< S >::get_time_bounds ( ) const

inline

Get time bounds of available history.

Returns: Pair of (min_time, max_time)

Definition at line 385 of file interpolation_decorator.hpp.

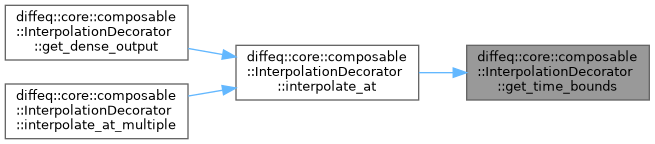

Here is the caller graph for this function:

◆ integrate()

template<system_state S>

void diffeq::core::composable::InterpolationDecorator< S >::integrate	(	typename IntegratorDecorator< S >::state_type &	state,
		typename IntegratorDecorator< S >::time_type	dt,
		typename IntegratorDecorator< S >::time_type	end_time
	)

inlineoverride

Override integrate to maintain history during integration.

Definition at line 263 of file interpolation_decorator.hpp.

◆ interpolate_at()

template<system_state S>

S diffeq::core::composable::InterpolationDecorator< S >::interpolate_at ( typename IntegratorDecorator< S >::time_type t )

inline

Get interpolated state at arbitrary time.

Parameters

t	Time for interpolation

Returns: Interpolated state

Exceptions

std::runtime_error if interpolation fails

Definition at line 286 of file interpolation_decorator.hpp.

Here is the call graph for this function:

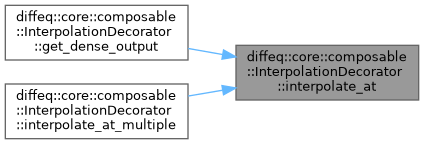

Here is the caller graph for this function:

◆ interpolate_at_multiple()

template<system_state S>

std::vector< S > diffeq::core::composable::InterpolationDecorator< S >::interpolate_at_multiple ( const std::vector< typename IntegratorDecorator< S >::time_type > & time_points )

inline

Get interpolated states at multiple time points.

Parameters

time_points Vector of time points

Returns: Vector of interpolated states

Definition at line 327 of file interpolation_decorator.hpp.

Here is the call graph for this function:

◆ reset_statistics()

template<system_state S>

void diffeq::core::composable::InterpolationDecorator< S >::reset_statistics ( )

inline

Reset interpolation statistics.

Definition at line 377 of file interpolation_decorator.hpp.

◆ step()

template<system_state S>

void diffeq::core::composable::InterpolationDecorator< S >::step	(	typename IntegratorDecorator< S >::state_type &	state,
		typename IntegratorDecorator< S >::time_type	dt
	)

inlineoverride

Override step to record state history.

Definition at line 255 of file interpolation_decorator.hpp.

The documentation for this class was generated from the following file:

include/core/composable/interpolation_decorator.hpp
