diffeq::core::composable::InterprocessDecorator< S > Class Template Reference

Interprocess communication decorator. More...

#include <interprocess_decorator.hpp>

Inheritance diagram for diffeq::core::composable::InterprocessDecorator< S >:

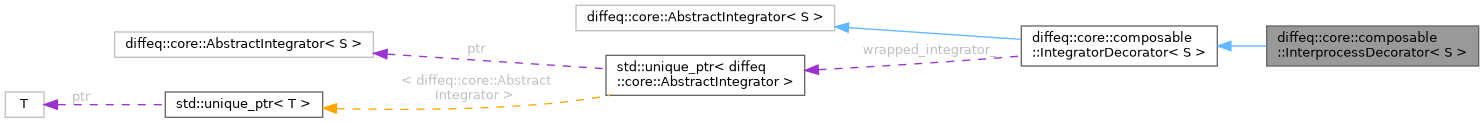

Collaboration diagram for diffeq::core::composable::InterprocessDecorator< S >:

Public Member Functions
	InterprocessDecorator (std::unique_ptr< AbstractIntegrator< S > > integrator, InterprocessConfig config={})
	Construct interprocess decorator.
	~InterprocessDecorator ()
	Destructor ensures proper cleanup.
void	step (typename IntegratorDecorator< S >::state_type &state, typename IntegratorDecorator< S >::time_type dt) override
	Override step to handle IPC during integration.
void	integrate (typename IntegratorDecorator< S >::state_type &state, typename IntegratorDecorator< S >::time_type dt, typename IntegratorDecorator< S >::time_type end_time) override
	Override integrate to handle IPC during integration.
void	set_receive_callback (std::function< void(const S &, typename IntegratorDecorator< S >::time_type)> callback)
	Set callback for received data.
bool	send_state (const S &state, typename IntegratorDecorator< S >::time_type time)
	Send state data to other processes.
const IPCStats &	get_statistics () const
	Get current IPC statistics.
void	reset_statistics ()
	Reset IPC statistics.
bool	is_connected () const
	Check if channel is connected.
std::string	get_status () const
	Get channel status.
InterprocessConfig &	config ()
	Access and modify interprocess configuration.
const InterprocessConfig &	config () const
Public Member Functions inherited from diffeq::core::composable::IntegratorDecorator< S >
	IntegratorDecorator (std::unique_ptr< base_type > integrator)
	Construct decorator wrapping another integrator.
virtual	~IntegratorDecorator ()=default
	Virtual destructor for proper cleanup.
void	step (state_type &state, time_type dt) override
void	integrate (state_type &state, time_type dt, time_type end_time) override
time_type	current_time () const override
void	set_time (time_type t) override
void	set_system (system_function sys) override
base_type &	wrapped ()
	Access to wrapped integrator for advanced use.
const base_type &	wrapped () const
bool	has_wrapped_integrator () const
	Check if wrapped integrator exists.
Public Member Functions inherited from diffeq::core::AbstractIntegrator< S >
	AbstractIntegrator (system_function sys)
time_type	current_time () const
void	set_time (time_type t)
void	set_system (system_function sys)

Additional Inherited Members
Public Types inherited from diffeq::core::composable::IntegratorDecorator< S >
using	base_type = AbstractIntegrator< S >
using	state_type = typename base_type::state_type
using	time_type = typename base_type::time_type
using	system_function = typename base_type::system_function
Public Types inherited from diffeq::core::AbstractIntegrator< S >
using	state_type = S
using	time_type = typename S::value_type
using	value_type = typename S::value_type
using	system_function = std::function< void(time_type, const state_type &, state_type &)>
Protected Member Functions inherited from diffeq::core::AbstractIntegrator< S >
void	advance_time (time_type dt)
Protected Attributes inherited from diffeq::core::composable::IntegratorDecorator< S >
std::unique_ptr< base_type >	wrapped_integrator_
Protected Attributes inherited from diffeq::core::AbstractIntegrator< S >
system_function	sys_
time_type	current_time_

Detailed Description

template<system_state S>
class diffeq::core::composable::InterprocessDecorator< S >

Interprocess communication decorator.

This decorator provides comprehensive IPC capabilities with the following features:

• Multiple IPC methods (shared memory, named pipes, sockets)
• Producer/consumer and bidirectional communication
• Synchronous and asynchronous operation modes
• Reliability features (acknowledgments, retries, error correction)
• Performance optimization (batching, compression)

Key Design Principles:

• Single Responsibility: ONLY handles interprocess communication
• Flexible: Multiple IPC methods and configurations
• Robust: Error handling and reliability features
• Performance: Optimized for low-latency communication

Definition at line 567 of file interprocess_decorator.hpp.

Constructor & Destructor Documentation

InterprocessDecorator()

template<system_state S>

diffeq::core::composable::InterprocessDecorator< S >::InterprocessDecorator ( std::unique_ptr< AbstractIntegrator< S > >  integrator, InterprocessConfig  config = {}  )

inlineexplicit

Construct interprocess decorator.

Parameters

integrator	The integrator to wrap
config	Interprocess configuration (validated on construction)

Exceptions

std::invalid_argument

if config is invalid

Definition at line 598 of file interprocess_decorator.hpp.

~InterprocessDecorator()

template<system_state S>

diffeq::core::composable::InterprocessDecorator< S >::~InterprocessDecorator ( )

inline

Destructor ensures proper cleanup.

Definition at line 613 of file interprocess_decorator.hpp.

Member Function Documentation

config() [1/2]

template<system_state S>

InterprocessConfig & diffeq::core::composable::InterprocessDecorator< S >::config ( )

inline

Access and modify interprocess configuration.

Definition at line 743 of file interprocess_decorator.hpp.

config() [2/2]

template<system_state S>

const InterprocessConfig & diffeq::core::composable::InterprocessDecorator< S >::config ( ) const

inline

Definition at line 744 of file interprocess_decorator.hpp.

get_statistics()

template<system_state S>

const IPCStats & diffeq::core::composable::InterprocessDecorator< S >::get_statistics ( ) const

inline

Get current IPC statistics.

Definition at line 715 of file interprocess_decorator.hpp.

get_status()

template<system_state S>

std::string diffeq::core::composable::InterprocessDecorator< S >::get_status ( ) const

inline

Get channel status.

Definition at line 736 of file interprocess_decorator.hpp.

integrate()

template<system_state S>

void diffeq::core::composable::InterprocessDecorator< S >::integrate ( typename IntegratorDecorator< S >::state_type &  state, typename IntegratorDecorator< S >::time_type  dt, typename IntegratorDecorator< S >::time_type  end_time  )

inlineoverride

Override integrate to handle IPC during integration.

Definition at line 646 of file interprocess_decorator.hpp.

Here is the call graph for this function:

is_connected()

template<system_state S>

bool diffeq::core::composable::InterprocessDecorator< S >::is_connected ( ) const

inline

Check if channel is connected.

Definition at line 729 of file interprocess_decorator.hpp.

reset_statistics()

template<system_state S>

void diffeq::core::composable::InterprocessDecorator< S >::reset_statistics ( )

inline

Reset IPC statistics.

Definition at line 722 of file interprocess_decorator.hpp.

send_state()

template<system_state S>

bool diffeq::core::composable::InterprocessDecorator< S >::send_state ( const S &  state, typename IntegratorDecorator< S >::time_type  time  )

inline

Send state data to other processes.

Parameters

state	Current state
time	Current time

Returns

true if successful

Definition at line 675 of file interprocess_decorator.hpp.

Here is the caller graph for this function:

set_receive_callback()

template<system_state S>

void diffeq::core::composable::InterprocessDecorator< S >::set_receive_callback ( std::function< void(const S &, typename IntegratorDecorator< S >::time_type)>  callback )

inline

Set callback for received data.

Parameters

callback

Function to call when data is received

Definition at line 665 of file interprocess_decorator.hpp.

step()

template<system_state S>

void diffeq::core::composable::InterprocessDecorator< S >::step ( typename IntegratorDecorator< S >::state_type &  state, typename IntegratorDecorator< S >::time_type  dt  )

inlineoverride

Override step to handle IPC during integration.

Definition at line 623 of file interprocess_decorator.hpp.

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• include/core/composable/interprocess_decorator.hpp
