Signal decorator - adds signal processing to any integrator. More...

#include <signal_decorator.hpp>

Inheritance diagram for diffeq::core::composable::SignalDecorator< S >:

[legend]

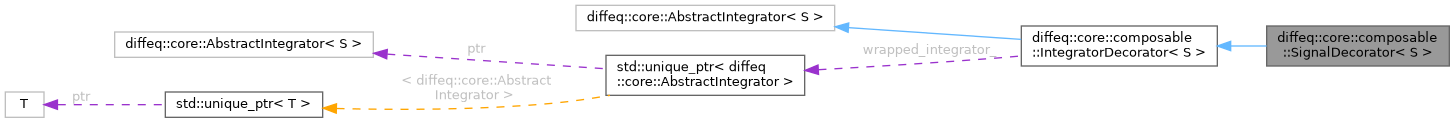

Collaboration diagram for diffeq::core::composable::SignalDecorator< S >:

[legend]

Public Member Functions
	SignalDecorator (std::unique_ptr< AbstractIntegrator< S > > integrator, SignalConfig config={})
	Construct signal decorator.

void	step (typename IntegratorDecorator< S >::state_type &state, typename IntegratorDecorator< S >::time_type dt) override
	Override step to add signal processing.

void	integrate (typename IntegratorDecorator< S >::state_type &state, typename IntegratorDecorator< S >::time_type dt, typename IntegratorDecorator< S >::time_type end_time) override
	Override integrate to handle signal processing during integration.

void	register_signal_handler (std::function< void(S &, typename IntegratorDecorator< S >::time_type)> handler, const std::string &signal_id="", SignalPriority priority=SignalPriority::NORMAL)
	Register a signal handler function.

void	register_signal_handlers (const std::vector< std::function< void(S &, typename IntegratorDecorator< S >::time_type)> > &handlers)
	Register multiple signal handlers at once.

void	clear_signal_handlers ()
	Clear all signal handlers.

size_t	get_signal_handler_count () const
	Get number of registered signal handlers.

void	process_signals_now (S &state, typename IntegratorDecorator< S >::time_type time)
	Force immediate signal processing.

const SignalStats &	get_statistics () const
	Get signal processing statistics.

void	reset_statistics ()
	Reset signal processing statistics.

bool	is_processing_active () const
	Check if signal processing is currently active.

SignalConfig &	config ()
	Access and modify signal configuration.

const SignalConfig &	config () const

void	update_config (SignalConfig new_config)
	Update signal configuration with validation.

Public Member Functions inherited from diffeq::core::composable::IntegratorDecorator< S >
	IntegratorDecorator (std::unique_ptr< base_type > integrator)
	Construct decorator wrapping another integrator.

virtual	~IntegratorDecorator ()=default
	Virtual destructor for proper cleanup.

void	step (state_type &state, time_type dt) override

void	integrate (state_type &state, time_type dt, time_type end_time) override

time_type	current_time () const override

void	set_time (time_type t) override

void	set_system (system_function sys) override

base_type &	wrapped ()
	Access to wrapped integrator for advanced use.

const base_type &	wrapped () const

bool	has_wrapped_integrator () const
	Check if wrapped integrator exists.

Public Member Functions inherited from diffeq::core::AbstractIntegrator< S >
	AbstractIntegrator (system_function sys)

time_type	current_time () const

void	set_time (time_type t)

void	set_system (system_function sys)

Additional Inherited Members
Public Types inherited from diffeq::core::composable::IntegratorDecorator< S >
using	base_type = AbstractIntegrator< S >

using	state_type = typename base_type::state_type

using	time_type = typename base_type::time_type

using	system_function = typename base_type::system_function

Public Types inherited from diffeq::core::AbstractIntegrator< S >
using	state_type = S

using	time_type = typename S::value_type

using	value_type = typename S::value_type

using	system_function = std::function< void(time_type, const state_type &, state_type &)>

Protected Member Functions inherited from diffeq::core::AbstractIntegrator< S >
void	advance_time (time_type dt)

Protected Attributes inherited from diffeq::core::composable::IntegratorDecorator< S >
std::unique_ptr< base_type >	wrapped_integrator_

Protected Attributes inherited from diffeq::core::AbstractIntegrator< S >
system_function	sys_

time_type	current_time_

Detailed Description

template<system_state S>
class diffeq::core::composable::SignalDecorator< S >

Signal decorator - adds signal processing to any integrator.

This decorator provides comprehensive signal processing with the following features:

Multiple processing modes (sync, async, batch)
Signal priority handling
Real-time signal buffering and processing
Detailed statistics and performance monitoring

Key Design Principles:

Single Responsibility: ONLY handles signal processing
No Dependencies: Works with any integrator type
Real-time: Minimal latency signal handling
Thread-safe: Safe concurrent signal registration and processing

Definition at line 128 of file signal_decorator.hpp.

Constructor & Destructor Documentation

◆ SignalDecorator()

template<system_state S>

diffeq::core::composable::SignalDecorator< S >::SignalDecorator	(	std::unique_ptr< AbstractIntegrator< S > >	integrator,
		SignalConfig	config = `{}`
	)

inlineexplicit

Construct signal decorator.

Parameters

integrator	The integrator to wrap
config	Signal configuration (validated on construction)

Exceptions

std::invalid_argument if config is invalid

Definition at line 145 of file signal_decorator.hpp.

Member Function Documentation

◆ clear_signal_handlers()

template<system_state S>

void diffeq::core::composable::SignalDecorator< S >::clear_signal_handlers ( )

inline

Clear all signal handlers.

Definition at line 232 of file signal_decorator.hpp.

◆ config() [1/2]

template<system_state S>

SignalConfig & diffeq::core::composable::SignalDecorator< S >::config ( )

inline

Access and modify signal configuration.

Definition at line 283 of file signal_decorator.hpp.

◆ config() [2/2]

template<system_state S>

const SignalConfig & diffeq::core::composable::SignalDecorator< S >::config ( ) const

inline

Definition at line 284 of file signal_decorator.hpp.

◆ get_signal_handler_count()

template<system_state S>

size_t diffeq::core::composable::SignalDecorator< S >::get_signal_handler_count ( ) const

inline

Get number of registered signal handlers.

Definition at line 245 of file signal_decorator.hpp.

◆ get_statistics()

template<system_state S>

const SignalStats & diffeq::core::composable::SignalDecorator< S >::get_statistics ( ) const

inline

Get signal processing statistics.

Definition at line 262 of file signal_decorator.hpp.

◆ integrate()

template<system_state S>

void diffeq::core::composable::SignalDecorator< S >::integrate	(	typename IntegratorDecorator< S >::state_type &	state,
		typename IntegratorDecorator< S >::time_type	dt,
		typename IntegratorDecorator< S >::time_type	end_time
	)

inlineoverride

Override integrate to handle signal processing during integration.

Definition at line 173 of file signal_decorator.hpp.

◆ is_processing_active()

template<system_state S>

bool diffeq::core::composable::SignalDecorator< S >::is_processing_active ( ) const

inline

Check if signal processing is currently active.

Definition at line 276 of file signal_decorator.hpp.

◆ process_signals_now()

template<system_state S>

void diffeq::core::composable::SignalDecorator< S >::process_signals_now	(	S &	state,
		typename IntegratorDecorator< S >::time_type	time
	)

inline

Force immediate signal processing.

Parameters

state	Current state
time	Current time

Definition at line 255 of file signal_decorator.hpp.

◆ register_signal_handler()

template<system_state S>

void diffeq::core::composable::SignalDecorator< S >::register_signal_handler	(	std::function< void(S &, typename IntegratorDecorator< S >::time_type)>	handler,
		const std::string &	signal_id = `""`,
		SignalPriority	priority = `SignalPriority::NORMAL`
	)

inline

Register a signal handler function.

Parameters

handler	Function to handle signals: void(S& state, T time)
signal_id	Optional identifier for the signal
priority	Signal priority level

Definition at line 194 of file signal_decorator.hpp.

◆ register_signal_handlers()

template<system_state S>

void diffeq::core::composable::SignalDecorator< S >::register_signal_handlers	(	const std::vector< std::function< void(S &, typename IntegratorDecorator< S >::time_type)>	,
		&	handlers
	)

inline

Register multiple signal handlers at once.

Parameters

handlers Vector of signal handler functions

Definition at line 220 of file signal_decorator.hpp.

◆ reset_statistics()

template<system_state S>

void diffeq::core::composable::SignalDecorator< S >::reset_statistics ( )

inline

Reset signal processing statistics.

Definition at line 269 of file signal_decorator.hpp.

◆ step()

template<system_state S>

void diffeq::core::composable::SignalDecorator< S >::step	(	typename IntegratorDecorator< S >::state_type &	state,
		typename IntegratorDecorator< S >::time_type	dt
	)

inlineoverride

Override step to add signal processing.

Definition at line 156 of file signal_decorator.hpp.

◆ update_config()

template<system_state S>

void diffeq::core::composable::SignalDecorator< S >::update_config ( SignalConfig new_config )

inline

Update signal configuration with validation.

Parameters

new_config New configuration

Exceptions

std::invalid_argument if new config is invalid

Definition at line 291 of file signal_decorator.hpp.

Here is the call graph for this function:

The documentation for this class was generated from the following file:

include/core/composable/signal_decorator.hpp
