zlayout::components::DigitalComponentFactory Class Reference

Digital component factory. More...

#include <digital_components.hpp>

Static Public Member Functions
static std::shared_ptr< LogicGate >	createLogicGate (const std::string &name, LogicGate::GateType type, size_t input_count=2)
static std::shared_ptr< DFlipFlop >	createDFlipFlop (const std::string &name, bool has_reset=true, bool has_set=false)
static std::shared_ptr< JKFlipFlop >	createJKFlipFlop (const std::string &name, bool has_reset=true, bool has_set=false)
static std::shared_ptr< SRLatch >	createSRLatch (const std::string &name, bool is_gated=false)
static std::shared_ptr< BinaryCounter >	createBinaryCounter (const std::string &name, size_t width, bool is_up_counter=true)
static std::shared_ptr< ShiftRegister >	createShiftRegister (const std::string &name, size_t width, ShiftRegister::ShiftType type)
static std::shared_ptr< Multiplexer >	createMultiplexer (const std::string &name, size_t input_count)
static std::shared_ptr< Demultiplexer >	createDemultiplexer (const std::string &name, size_t output_count)
static std::shared_ptr< Decoder >	createDecoder (const std::string &name, size_t input_width, bool has_enable=true)
static std::shared_ptr< Encoder >	createEncoder (const std::string &name, size_t input_count, bool is_priority=false)
static std::shared_ptr< FullAdder >	createFullAdder (const std::string &name)
static std::shared_ptr< RippleCarryAdder >	createRippleCarryAdder (const std::string &name, size_t width)
static std::shared_ptr< Memory >	createMemory (const std::string &name, size_t address_width, size_t data_width, Memory::MemoryType type)
static void	registerStandardComponents (ComponentLibrary &library)
static std::shared_ptr< Component >	create74Series (const std::string &part_number, const std::string &name)
static std::shared_ptr< Component >	create4000Series (const std::string &part_number, const std::string &name)

Detailed Description

Digital component factory.

Definition at line 473 of file digital_components.hpp.

Member Function Documentation

create4000Series()

std::shared_ptr< Component > zlayout::components::DigitalComponentFactory::create4000Series ( const std::string & part_number, const std::string & name )

static

create74Series()

std::shared_ptr< Component > zlayout::components::DigitalComponentFactory::create74Series ( const std::string & part_number, const std::string & name )

static

createBinaryCounter()

std::shared_ptr< BinaryCounter > zlayout::components::DigitalComponentFactory::createBinaryCounter ( const std::string & name, size_t width, bool is_up_counter = true )

static

createDecoder()

std::shared_ptr< Decoder > zlayout::components::DigitalComponentFactory::createDecoder ( const std::string & name, size_t input_width, bool has_enable = true )

static

createDemultiplexer()

std::shared_ptr< Demultiplexer > zlayout::components::DigitalComponentFactory::createDemultiplexer ( const std::string & name, size_t output_count )

static

createDFlipFlop()

std::shared_ptr< DFlipFlop > zlayout::components::DigitalComponentFactory::createDFlipFlop ( const std::string & name, bool has_reset = true, bool has_set = false )

static

Here is the caller graph for this function:

createEncoder()

std::shared_ptr< Encoder > zlayout::components::DigitalComponentFactory::createEncoder ( const std::string & name, size_t input_count, bool is_priority = false )

static

createFullAdder()

std::shared_ptr< FullAdder > zlayout::components::DigitalComponentFactory::createFullAdder ( const std::string & name )

static

Here is the caller graph for this function:

createJKFlipFlop()

std::shared_ptr< JKFlipFlop > zlayout::components::DigitalComponentFactory::createJKFlipFlop ( const std::string & name, bool has_reset = true, bool has_set = false )

static

createLogicGate()

std::shared_ptr< LogicGate > zlayout::components::DigitalComponentFactory::createLogicGate ( const std::string & name, LogicGate::GateType type, size_t input_count = 2 )

static

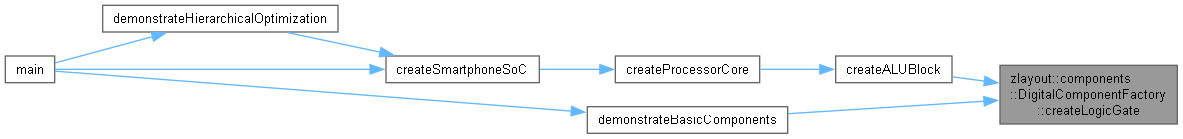

Here is the caller graph for this function:

createMemory()

std::shared_ptr< Memory > zlayout::components::DigitalComponentFactory::createMemory ( const std::string & name, size_t address_width, size_t data_width, Memory::MemoryType type )

static

createMultiplexer()

std::shared_ptr< Multiplexer > zlayout::components::DigitalComponentFactory::createMultiplexer ( const std::string & name, size_t input_count )

static

createRippleCarryAdder()

std::shared_ptr< RippleCarryAdder > zlayout::components::DigitalComponentFactory::createRippleCarryAdder ( const std::string & name, size_t width )

static

createShiftRegister()

std::shared_ptr< ShiftRegister > zlayout::components::DigitalComponentFactory::createShiftRegister ( const std::string & name, size_t width, ShiftRegister::ShiftType type )

static

createSRLatch()

std::shared_ptr< SRLatch > zlayout::components::DigitalComponentFactory::createSRLatch ( const std::string & name, bool is_gated = false )

static

registerStandardComponents()

void zlayout::components::DigitalComponentFactory::registerStandardComponents ( ComponentLibrary & library )

static

---

The documentation for this class was generated from the following file:

• include/zlayout/components/digital_components.hpp
