zlayout::components::LogicGate Class Reference
Basic Logic Gates. More...
#include <digital_components.hpp>
Inheritance diagram for zlayout::components::LogicGate:

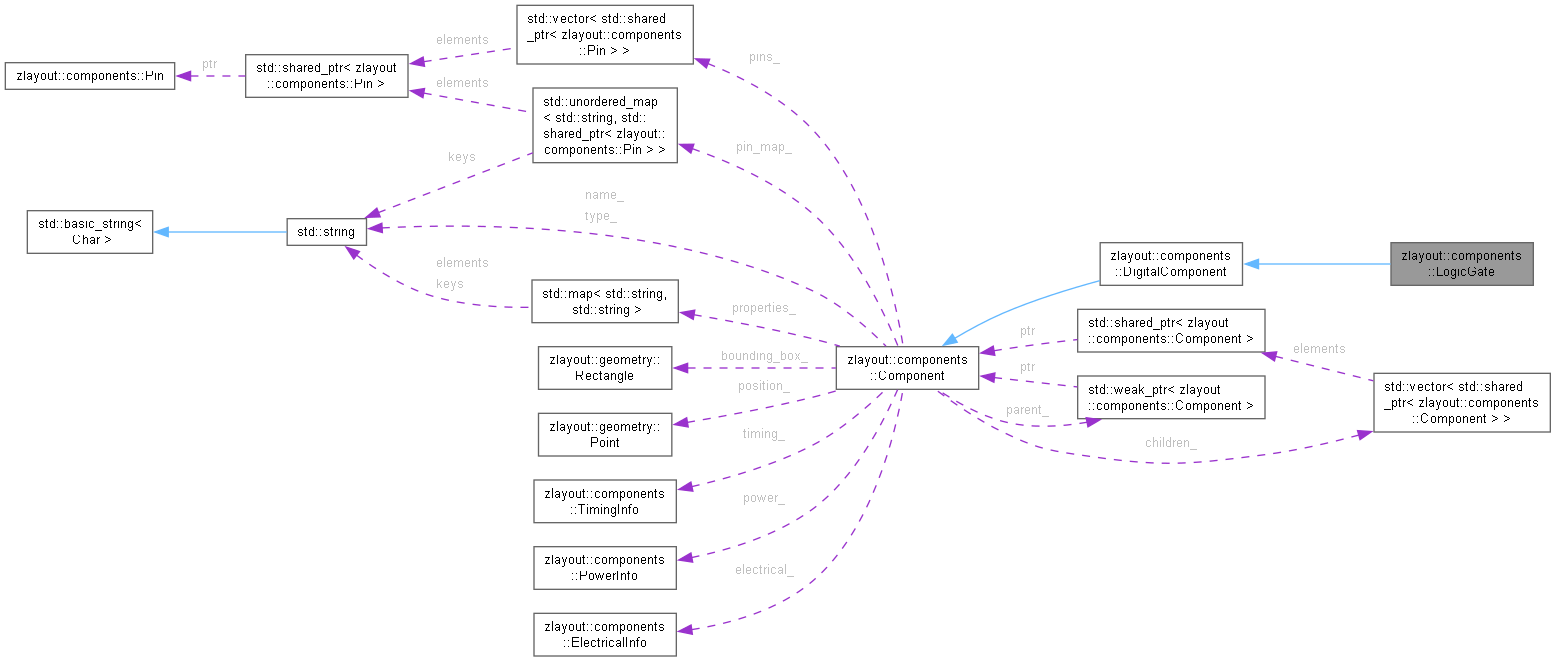

Collaboration diagram for zlayout::components::LogicGate:
Public Types | |
| enum class | GateType { AND , OR , NOT , NAND , NOR , XOR , XNOR , BUFFER } |
Public Member Functions | |
| LogicGate (const std::string &name, GateType type, size_t input_count=2) | |
| GateType | getGateType () const |
| size_t | getInputCount () const |
| void | evaluateLogic () override |
| std::string | getDescription () const override |
| Public Member Functions inherited from zlayout::components::DigitalComponent | |
| DigitalComponent (const std::string &name, ComponentCategory category) | |
| LogicFamily | getLogicFamily () const |
| void | setLogicFamily (LogicFamily family) |
| double | getVil () const |
| void | setVil (double vil) |
| double | getVih () const |
| void | setVih (double vih) |
| double | getVol () const |
| void | setVol (double vol) |
| double | getVoh () const |
| void | setVoh (double voh) |
| virtual void | propagateSignals () |
| void | simulate (double time_step) override |
| Public Member Functions inherited from zlayout::components::Component | |
| Component (const std::string &name, ComponentCategory category) | |
| virtual | ~Component ()=default |
| const std::string & | getName () const |
| const std::string & | getType () const |
| ComponentCategory | getCategory () const |
| void | setName (const std::string &name) |
| void | setType (const std::string &type) |
| void | addChild (std::shared_ptr< Component > child) |
| void | removeChild (const std::string &name) |
| std::shared_ptr< Component > | getChild (const std::string &name) const |
| const std::vector< std::shared_ptr< Component > > & | getChildren () const |
| std::shared_ptr< Component > | getParent () const |
| void | setParent (std::shared_ptr< Component > parent) |
| const geometry::Rectangle & | getBoundingBox () const |
| void | setBoundingBox (const geometry::Rectangle &bbox) |
| geometry::Point | getPosition () const |
| void | setPosition (const geometry::Point &pos) |
| double | getRotation () const |
| void | setRotation (double angle) |
| void | addPin (std::shared_ptr< Pin > pin) |
| void | removePin (const std::string &name) |
| std::shared_ptr< Pin > | getPin (const std::string &name) const |
| const std::vector< std::shared_ptr< Pin > > & | getPins () const |
| void | setProperty (const std::string &key, const std::string &value) |
| std::string | getProperty (const std::string &key) const |
| const std::map< std::string, std::string > & | getProperties () const |
| void | setTimingInfo (const TimingInfo &timing) |
| const TimingInfo & | getTimingInfo () const |
| void | setPowerInfo (const PowerInfo &power) |
| const PowerInfo & | getPowerInfo () const |
| void | setElectricalInfo (const ElectricalInfo &electrical) |
| const ElectricalInfo & | getElectricalInfo () const |
| void | setTechNode (TechNode node) |
| TechNode | getTechNode () const |
| virtual void | reset () |
| virtual geometry::Rectangle | calculateHierarchicalBoundingBox () const |
| virtual double | calculateTotalArea () const |
| virtual size_t | getTotalGateCount () const |
| virtual std::vector< std::shared_ptr< Component > > | flattenHierarchy () const |
| virtual std::string | serialize () const |
| virtual void | deserialize (const std::string &data) |
Additional Inherited Members | |
| Protected Member Functions inherited from zlayout::components::DigitalComponent | |
| SignalState | voltageToSignalState (double voltage) const |
| double | signalStateToVoltage (SignalState state) const |
| Protected Attributes inherited from zlayout::components::DigitalComponent | |
| LogicFamily | logic_family_ = LogicFamily::CMOS |
| double | vil_ = 0.8 |
| double | vih_ = 2.0 |
| double | vol_ = 0.4 |
| double | voh_ = 2.4 |
| Protected Attributes inherited from zlayout::components::Component | |
| std::string | name_ |
| std::string | type_ |
| ComponentCategory | category_ |
| std::vector< std::shared_ptr< Component > > | children_ |
| std::weak_ptr< Component > | parent_ |
| geometry::Rectangle | bounding_box_ |
| geometry::Point | position_ |
| double | rotation_ = 0.0 |
| std::vector< std::shared_ptr< Pin > > | pins_ |
| std::unordered_map< std::string, std::shared_ptr< Pin > > | pin_map_ |
| std::map< std::string, std::string > | properties_ |
| TimingInfo | timing_ |
| PowerInfo | power_ |
| ElectricalInfo | electrical_ |
| TechNode | tech_node_ = TechNode::um_7 |
Detailed Description
Basic Logic Gates.
Definition at line 80 of file digital_components.hpp.
Member Enumeration Documentation
◆ GateType
|
strong |
| Enumerator | |
|---|---|
| AND | |
| OR | |
| NOT | |
| NAND | |
| NOR | |
| XOR | |
| XNOR | |
| BUFFER | |
Definition at line 82 of file digital_components.hpp.
Constructor & Destructor Documentation
◆ LogicGate()
| zlayout::components::LogicGate::LogicGate | ( | const std::string & | name, |
| GateType | type, | ||
| size_t | input_count = 2 ) |
Member Function Documentation
◆ evaluateLogic()
|
overridevirtual |
Implements zlayout::components::DigitalComponent.
◆ getDescription()
|
overridevirtual |
Reimplemented from zlayout::components::Component.
◆ getGateType()
|
inline |
Definition at line 88 of file digital_components.hpp.
◆ getInputCount()
|
inline |
Definition at line 89 of file digital_components.hpp.
The documentation for this class was generated from the following file:
- include/zlayout/components/digital_components.hpp
