Inheritance diagram for zlayout.logic_circuits.ProcessorFSM:

Collaboration diagram for zlayout.logic_circuits.ProcessorFSM:

Public Member Functions

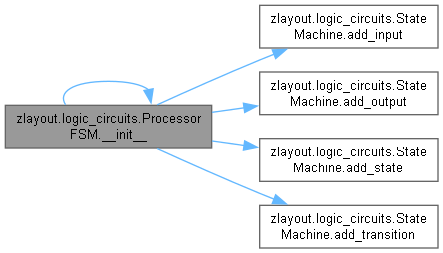

	__init__ (self, str name)

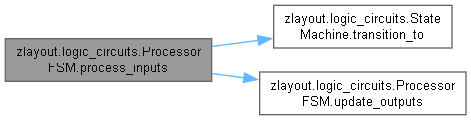

	process_inputs (self)
	update_outputs (self)
Public Member Functions inherited from zlayout.logic_circuits.StateMachine
	__init__ (self, str name)
	add_state (self, str state)
	add_transition (self, str from_state, str to_state, str condition)
	add_input (self, str signal_name)
	add_output (self, str signal_name)
	transition_to (self, str new_state)
List[Tuple[str, float]]	get_state_history (self)

Additional Inherited Members
Public Attributes inherited from zlayout.logic_circuits.StateMachine
	name = name
str	current_state = "IDLE"
dict	states = {"IDLE"}
dict	transitions = {}
list	state_history = []
dict	input_signals = {}
dict	output_signals = {}
