zlayout::optimization::Component Struct Reference

Circuit component with connectivity information. More...

#include <layout_optimizer.hpp>

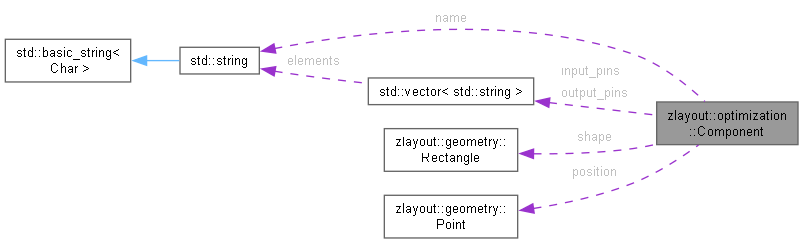

Collaboration diagram for zlayout::optimization::Component:

Public Member Functions
	Component (const std::string &name, const geometry::Rectangle &shape)

Public Attributes
std::string	name
geometry::Rectangle	shape
geometry::Point	position
std::vector< std::string >	input_pins
std::vector< std::string >	output_pins
double	power_consumption
double	thermal_coefficient
bool	is_fixed

Detailed Description

Circuit component with connectivity information.

Definition at line 29 of file layout_optimizer.hpp.

Constructor & Destructor Documentation

Component()

zlayout::optimization::Component::Component ( const std::string & name, const geometry::Rectangle & shape )

inline

Definition at line 41 of file layout_optimizer.hpp.

Member Data Documentation

input_pins

std::vector<std::string> zlayout::optimization::Component::input_pins

Definition at line 33 of file layout_optimizer.hpp.

is_fixed

bool zlayout::optimization::Component::is_fixed

Definition at line 39 of file layout_optimizer.hpp.

name

std::string zlayout::optimization::Component::name

Definition at line 30 of file layout_optimizer.hpp.

output_pins

std::vector<std::string> zlayout::optimization::Component::output_pins

Definition at line 34 of file layout_optimizer.hpp.

position

geometry::Point zlayout::optimization::Component::position

Definition at line 32 of file layout_optimizer.hpp.

power_consumption

double zlayout::optimization::Component::power_consumption

Definition at line 37 of file layout_optimizer.hpp.

shape

geometry::Rectangle zlayout::optimization::Component::shape

Definition at line 31 of file layout_optimizer.hpp.

thermal_coefficient

double zlayout::optimization::Component::thermal_coefficient

Definition at line 38 of file layout_optimizer.hpp.

---

The documentation for this struct was generated from the following file:

• include/zlayout/optimization/layout_optimizer.hpp
