Axis-aligned rectangle for bounding boxes and simple EDA components. More...

#include <rectangle.hpp>

Public Member Functions
	Rectangle ()
	Default constructor - creates empty rectangle at origin.
	Rectangle (double x, double y, double width, double height)
	Constructor with position and dimensions.
	Rectangle (const Point &bottom_left, const Point &top_right)
	Constructor from two corner points.
	Rectangle (const Rectangle &other)=default
	Copy constructor.
Rectangle &	operator= (const Rectangle &other)=default
	Assignment operator.
bool	operator== (const Rectangle &other) const
	Equality operator.
bool	operator!= (const Rectangle &other) const
	Inequality operator.
bool	operator< (const Rectangle &other) const
	Less than operator for sorting.
double	left () const
	Get left edge X coordinate.
double	right () const
	Get right edge X coordinate.
double	bottom () const
	Get bottom edge Y coordinate.
double	top () const
	Get top edge Y coordinate.
Point	center () const
	Get center point of rectangle.
Point	bottom_left () const
	Get bottom-left corner point.
Point	bottom_right () const
	Get bottom-right corner point.
Point	top_left () const
	Get top-left corner point.
Point	top_right () const
	Get top-right corner point.
std::vector< Point >	corners () const
	Get all four corner points.
double	area () const
	Calculate rectangle area.
double	perimeter () const
	Calculate rectangle perimeter.
bool	is_empty () const
	Check if rectangle is empty (zero area)
bool	is_valid () const
	Check if rectangle is valid (positive dimensions)
bool	contains_point (const Point &point) const
	Check if point is inside rectangle (inclusive of boundary)
bool	contains_rectangle (const Rectangle &other) const
	Check if another rectangle is completely inside this rectangle.
bool	intersects (const Rectangle &other) const
	Check if this rectangle intersects with another rectangle.
Rectangle	intersection (const Rectangle &other) const
	Calculate intersection rectangle with another rectangle.
Rectangle	union_with (const Rectangle &other) const
	Calculate union rectangle that contains both rectangles.
Rectangle	expand (double margin) const
	Expand rectangle by given margin in all directions.
Rectangle	expand (double left, double right, double bottom, double top) const
	Expand rectangle by different margins in each direction.
Rectangle	translate (const Point &offset) const
	Translate rectangle by given offset.
Rectangle	scale (double factor) const
	Scale rectangle by given factor (around center)
Rectangle	scale (double x_factor, double y_factor) const
	Scale rectangle by different factors in X and Y.
double	distance_to (const Rectangle &other) const
	Calculate minimum distance to another rectangle.
double	distance_to (const Point &point) const
	Calculate minimum distance to a point.
Polygon	to_polygon () const
	Convert rectangle to polygon representation.
std::string	to_string () const
	Get string representation.
	__init__ (self, float x, float y, float width, float height)
str	__repr__ (self)
float	left (self)
float	right (self)
float	top (self)
float	bottom (self)
Point	center (self)
bool	contains_point (self, Point point)
bool	intersects (self, 'Rectangle' other)
'Polygon'	to_polygon (self)

Static Public Member Functions
static Rectangle	from_center (const Point &center, double width, double height)
	Create rectangle from center point and dimensions.
static Rectangle	bounding_box (const std::vector< Point > &points)
	Create bounding rectangle for a set of points.
static Rectangle	bounding_box (const std::vector< Rectangle > &rectangles)
	Create rectangle that bounds multiple rectangles.

Public Attributes
double	x
	X coordinate of bottom-left corner.
double	y
	Y coordinate of bottom-left corner.
double	width
	Width of rectangle.
double	height
	Height of rectangle.
	x = float(x)
	y = float(y)
	width = float(width)
	height = float(height)
	bottom

Friends
std::ostream &	operator<< (std::ostream &os, const Rectangle &rect)
	Stream output operator.

Detailed Description

Axis-aligned rectangle for bounding boxes and simple EDA components.

Axis-aligned rectangle for bounding boxes and simple components.

Represents an axis-aligned rectangle in 2D space. Commonly used for component bounding boxes, chip outlines, and simple rectangular components in EDA layouts.

Definition at line 26 of file rectangle.hpp.

Constructor & Destructor Documentation

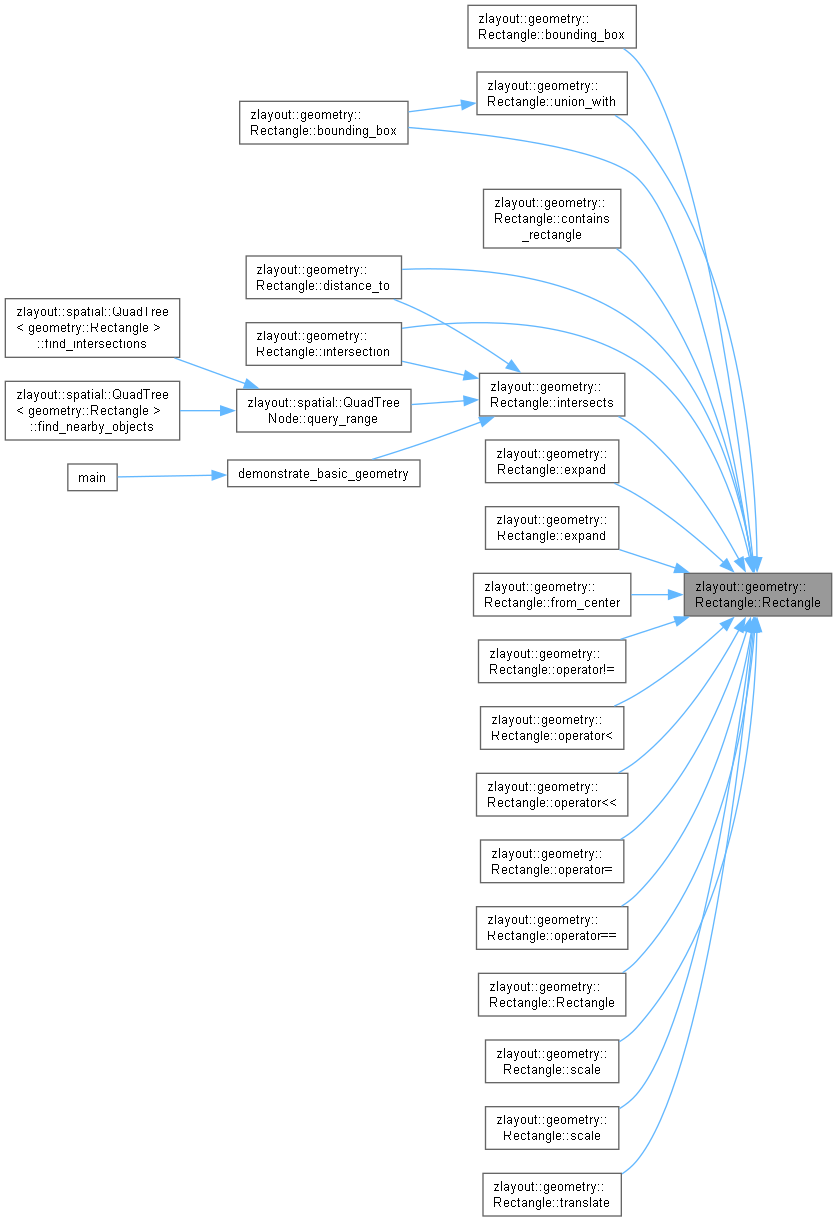

◆ Rectangle() [1/4]

zlayout::geometry::Rectangle::Rectangle ( )

inline

Default constructor - creates empty rectangle at origin.

Definition at line 36 of file rectangle.hpp.

Here is the caller graph for this function:

◆ Rectangle() [2/4]

zlayout::geometry::Rectangle::Rectangle	(	double	x,
		double	y,
		double	width,
		double	height )

Constructor with position and dimensions.

Parameters

x	X coordinate of bottom-left corner
y	Y coordinate of bottom-left corner
width	Rectangle width
height	Rectangle height

Definition at line 16 of file rectangle.cpp.

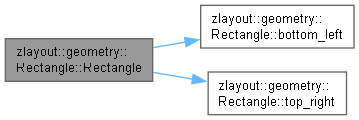

◆ Rectangle() [3/4]

zlayout::geometry::Rectangle::Rectangle	(	const Point &	bottom_left,
		const Point &	top_right )

Constructor from two corner points.

Parameters

bottom_left	Bottom-left corner
top_right	Top-right corner

Definition at line 23 of file rectangle.cpp.

Here is the call graph for this function:

◆ Rectangle() [4/4]

zlayout::geometry::Rectangle::Rectangle ( const Rectangle & other )

default

Copy constructor.

Here is the call graph for this function:

◆ init()

zlayout.geometry.Rectangle.__init__	(		self,
		float	x,
		float	y,
		float	width,
		float	height )

Definition at line 72 of file geometry.py.

Member Function Documentation

◆ repr()

str zlayout.geometry.Rectangle.__repr__ ( self )

Definition at line 78 of file geometry.py.

◆ area()

double zlayout::geometry::Rectangle::area ( ) const

inline

Calculate rectangle area.

Definition at line 134 of file rectangle.hpp.

Here is the caller graph for this function:

◆ bottom() [1/2]

float zlayout.geometry.Rectangle.bottom ( self )

Definition at line 94 of file geometry.py.

◆ bottom() [2/2]

double zlayout::geometry::Rectangle::bottom ( ) const

inline

Get bottom edge Y coordinate.

Definition at line 93 of file rectangle.hpp.

◆ bottom_left()

Point zlayout::geometry::Rectangle::bottom_left ( ) const

inline

Get bottom-left corner point.

Definition at line 108 of file rectangle.hpp.

Here is the caller graph for this function:

◆ bottom_right()

Point zlayout::geometry::Rectangle::bottom_right ( ) const

inline

Get bottom-right corner point.

Definition at line 113 of file rectangle.hpp.

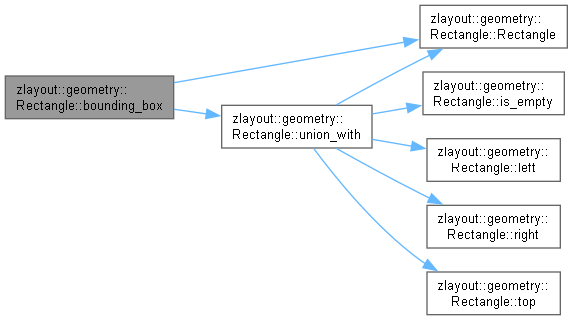

◆ bounding_box() [1/2]

Rectangle zlayout::geometry::Rectangle::bounding_box ( const std::vector< Point > & points )

static

Create bounding rectangle for a set of points.

Parameters

points Vector of points

Returns: Bounding rectangle

Definition at line 221 of file rectangle.cpp.

Here is the call graph for this function:

◆ bounding_box() [2/2]

Rectangle zlayout::geometry::Rectangle::bounding_box ( const std::vector< Rectangle > & rectangles )

static

Create rectangle that bounds multiple rectangles.

Parameters

rectangles Vector of rectangles

Returns: Bounding rectangle

Definition at line 239 of file rectangle.cpp.

Here is the call graph for this function:

◆ center() [1/2]

Point zlayout.geometry.Rectangle.center ( self )

Definition at line 98 of file geometry.py.

◆ center() [2/2]

Point zlayout::geometry::Rectangle::center ( ) const

Get center point of rectangle.

Definition at line 68 of file rectangle.cpp.

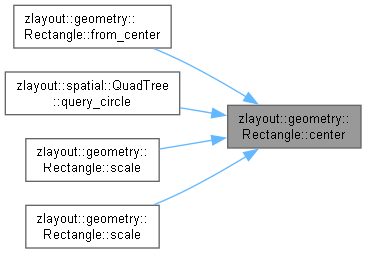

Here is the caller graph for this function:

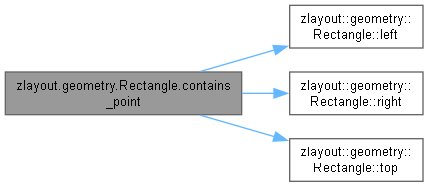

◆ contains_point() [1/2]

bool zlayout.geometry.Rectangle.contains_point	(		self,
		Point	point )

Check if point is inside rectangle.

Definition at line 101 of file geometry.py.

Here is the call graph for this function:

◆ contains_point() [2/2]

bool zlayout::geometry::Rectangle::contains_point ( const Point & point ) const

Check if point is inside rectangle (inclusive of boundary)

Parameters

point Point to test

Returns: true if point is inside or on rectangle boundary

Definition at line 89 of file rectangle.cpp.

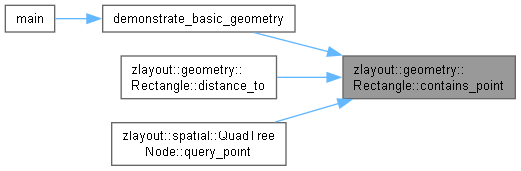

Here is the caller graph for this function:

◆ contains_rectangle()

bool zlayout::geometry::Rectangle::contains_rectangle ( const Rectangle & other ) const

Check if another rectangle is completely inside this rectangle.

Parameters

other Rectangle to test

Returns: true if other rectangle is completely inside

Definition at line 94 of file rectangle.cpp.

Here is the call graph for this function:

◆ corners()

std::vector< Point > zlayout::geometry::Rectangle::corners ( ) const

Get all four corner points.

Returns: Vector of corner points in order: bottom-left, bottom-right, top-right, top-left

Definition at line 72 of file rectangle.cpp.

Here is the caller graph for this function:

◆ distance_to() [1/2]

double zlayout::geometry::Rectangle::distance_to ( const Point & point ) const

Calculate minimum distance to a point.

Parameters

point Target point

Returns: Minimum distance to point

Definition at line 187 of file rectangle.cpp.

Here is the call graph for this function:

◆ distance_to() [2/2]

double zlayout::geometry::Rectangle::distance_to ( const Rectangle & other ) const

Calculate minimum distance to another rectangle.

Parameters

other Target rectangle

Returns: Minimum distance (0 if rectangles intersect)

Definition at line 164 of file rectangle.cpp.

Here is the call graph for this function:

◆ expand() [1/2]

Rectangle zlayout::geometry::Rectangle::expand	(	double	left,
		double	right,
		double	bottom,
		double	top ) const

Expand rectangle by different margins in each direction.

Parameters

left	Left margin
right	Right margin
bottom	Bottom margin
top	Top margin

Returns: Expanded rectangle

Definition at line 135 of file rectangle.cpp.

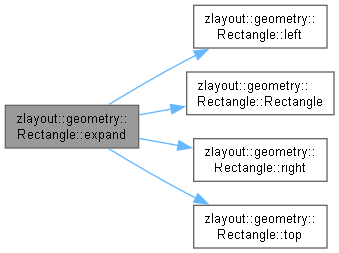

Here is the call graph for this function:

◆ expand() [2/2]

Rectangle zlayout::geometry::Rectangle::expand ( double margin ) const

Expand rectangle by given margin in all directions.

Parameters

margin Margin to add (can be negative to shrink)

Returns: Expanded rectangle

Definition at line 130 of file rectangle.cpp.

Here is the call graph for this function:

◆ from_center()

Rectangle zlayout::geometry::Rectangle::from_center	(	const Point &	center,
		double	width,
		double	height )

static

Create rectangle from center point and dimensions.

Parameters

center	Center point
width	Rectangle width
height	Rectangle height

Returns: Rectangle centered at given point

Definition at line 217 of file rectangle.cpp.

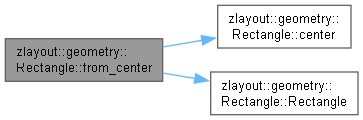

Here is the call graph for this function:

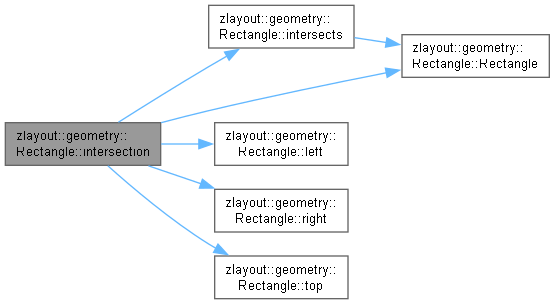

◆ intersection()

Rectangle zlayout::geometry::Rectangle::intersection ( const Rectangle & other ) const

Calculate intersection rectangle with another rectangle.

Parameters

other Rectangle to intersect with

Returns: Intersection rectangle (may be empty)

Definition at line 105 of file rectangle.cpp.

Here is the call graph for this function:

◆ intersects() [1/2]

bool zlayout.geometry.Rectangle.intersects	(		self,
		'Rectangle'	other )

Check if this rectangle intersects with another.

Definition at line 106 of file geometry.py.

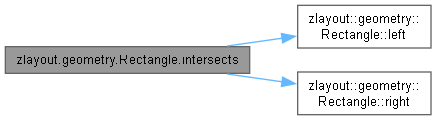

Here is the call graph for this function:

◆ intersects() [2/2]

bool zlayout::geometry::Rectangle::intersects ( const Rectangle & other ) const

Check if this rectangle intersects with another rectangle.

Parameters

other Rectangle to test intersection with

Returns: true if rectangles intersect

Definition at line 100 of file rectangle.cpp.

Here is the call graph for this function:

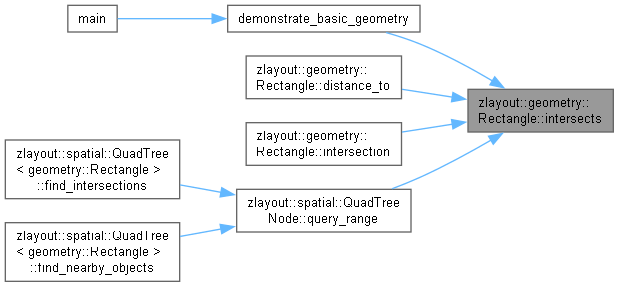

Here is the caller graph for this function:

◆ is_empty()

bool zlayout::geometry::Rectangle::is_empty ( ) const

Check if rectangle is empty (zero area)

Definition at line 81 of file rectangle.cpp.

Here is the caller graph for this function:

◆ is_valid()

bool zlayout::geometry::Rectangle::is_valid ( ) const

Check if rectangle is valid (positive dimensions)

Definition at line 85 of file rectangle.cpp.

◆ left() [1/2]

float zlayout.geometry.Rectangle.left ( self )

Definition at line 82 of file geometry.py.

◆ left() [2/2]

double zlayout::geometry::Rectangle::left ( ) const

inline

Get left edge X coordinate.

Definition at line 83 of file rectangle.hpp.

Here is the caller graph for this function:

◆ operator!=()

bool zlayout::geometry::Rectangle::operator!= ( const Rectangle & other ) const

Inequality operator.

Definition at line 37 of file rectangle.cpp.

Here is the call graph for this function:

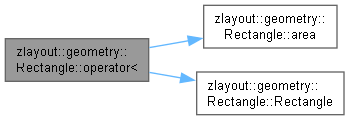

◆ operator<()

bool zlayout::geometry::Rectangle::operator< ( const Rectangle & other ) const

Less than operator for sorting.

Definition at line 41 of file rectangle.cpp.

Here is the call graph for this function:

◆ operator=()

Rectangle & zlayout::geometry::Rectangle::operator= ( const Rectangle & other )

default

Assignment operator.

Here is the call graph for this function:

◆ operator==()

bool zlayout::geometry::Rectangle::operator== ( const Rectangle & other ) const

Equality operator.

Definition at line 30 of file rectangle.cpp.

Here is the call graph for this function:

◆ perimeter()

double zlayout::geometry::Rectangle::perimeter ( ) const

inline

Calculate rectangle perimeter.

Definition at line 139 of file rectangle.hpp.

◆ right() [1/2]

float zlayout.geometry.Rectangle.right ( self )

Definition at line 86 of file geometry.py.

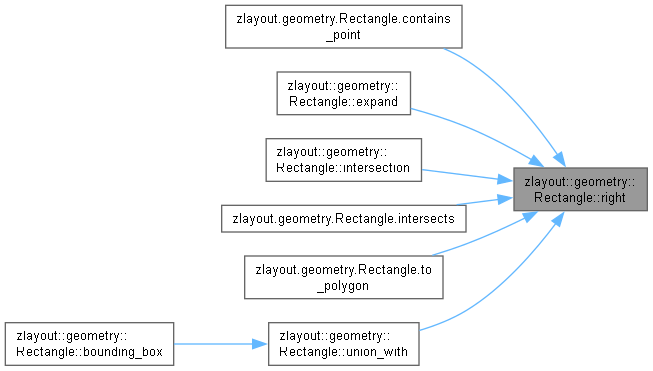

◆ right() [2/2]

double zlayout::geometry::Rectangle::right ( ) const

inline

Get right edge X coordinate.

Definition at line 88 of file rectangle.hpp.

Here is the caller graph for this function:

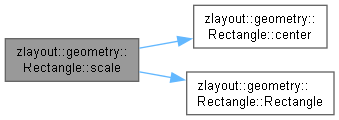

◆ scale() [1/2]

Rectangle zlayout::geometry::Rectangle::scale ( double factor ) const

Scale rectangle by given factor (around center)

Parameters

factor Scale factor

Returns: Scaled rectangle

Definition at line 144 of file rectangle.cpp.

Here is the call graph for this function:

◆ scale() [2/2]

Rectangle zlayout::geometry::Rectangle::scale	(	double	x_factor,
		double	y_factor ) const

Scale rectangle by different factors in X and Y.

Parameters

x_factor	X scale factor
y_factor	Y scale factor

Returns: Scaled rectangle

Definition at line 154 of file rectangle.cpp.

Here is the call graph for this function:

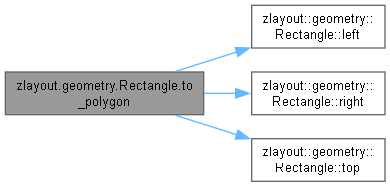

◆ to_polygon() [1/2]

'Polygon' zlayout.geometry.Rectangle.to_polygon ( self )

Convert rectangle to polygon.

Definition at line 111 of file geometry.py.

Here is the call graph for this function:

◆ to_polygon() [2/2]

Polygon zlayout::geometry::Rectangle::to_polygon ( ) const

Convert rectangle to polygon representation.

Returns: Polygon with rectangle vertices

Definition at line 198 of file rectangle.cpp.

Here is the call graph for this function:

◆ to_string()

std::string zlayout::geometry::Rectangle::to_string ( ) const

Get string representation.

Definition at line 203 of file rectangle.cpp.

Here is the caller graph for this function:

◆ top() [1/2]

float zlayout.geometry.Rectangle.top ( self )

Definition at line 90 of file geometry.py.

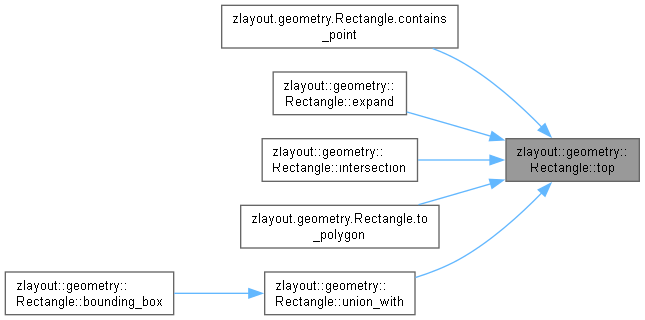

◆ top() [2/2]

double zlayout::geometry::Rectangle::top ( ) const

inline

Get top edge Y coordinate.

Definition at line 98 of file rectangle.hpp.

Here is the caller graph for this function:

◆ top_left()

Point zlayout::geometry::Rectangle::top_left ( ) const

inline

Get top-left corner point.

Definition at line 118 of file rectangle.hpp.

◆ top_right()

Point zlayout::geometry::Rectangle::top_right ( ) const

inline

Get top-right corner point.

Definition at line 123 of file rectangle.hpp.

Here is the caller graph for this function:

◆ translate()

Rectangle zlayout::geometry::Rectangle::translate ( const Point & offset ) const

Translate rectangle by given offset.

Parameters

offset Translation vector

Returns: Translated rectangle

Definition at line 140 of file rectangle.cpp.

Here is the call graph for this function:

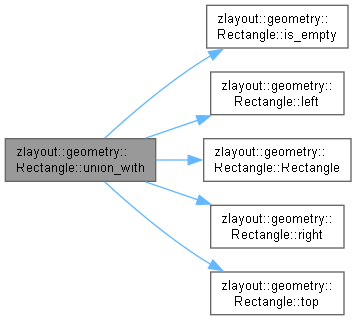

◆ union_with()

Rectangle zlayout::geometry::Rectangle::union_with ( const Rectangle & other ) const

Calculate union rectangle that contains both rectangles.

Parameters

other Rectangle to union with

Returns: Union rectangle

Definition at line 118 of file rectangle.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Rectangle &	rect )

friend

Stream output operator.

Definition at line 210 of file rectangle.cpp.

Member Data Documentation

◆ bottom

zlayout.geometry.Rectangle.bottom

Definition at line 109 of file geometry.py.

◆ height [1/2]

zlayout.geometry.Rectangle.height = float(height)

Definition at line 76 of file geometry.py.

◆ height [2/2]

double zlayout::geometry::Rectangle::height

Height of rectangle.

Definition at line 31 of file rectangle.hpp.

◆ width [1/2]

zlayout.geometry.Rectangle.width = float(width)

Definition at line 75 of file geometry.py.

◆ width [2/2]

double zlayout::geometry::Rectangle::width

Width of rectangle.

Definition at line 30 of file rectangle.hpp.

◆ x [1/2]

zlayout.geometry.Rectangle.x = float(x)

Definition at line 73 of file geometry.py.

◆ x [2/2]

double zlayout::geometry::Rectangle::x

X coordinate of bottom-left corner.

Definition at line 28 of file rectangle.hpp.

◆ y [1/2]

zlayout.geometry.Rectangle.y = float(y)

Definition at line 74 of file geometry.py.

◆ y [2/2]

double zlayout::geometry::Rectangle::y

Y coordinate of bottom-left corner.

Definition at line 29 of file rectangle.hpp.

The documentation for this class was generated from the following files:

include/zlayout/geometry/rectangle.hpp
zlayout/geometry.py
src/geometry/rectangle.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Rectangle() [1/4]

◆ Rectangle() [2/4]

◆ Rectangle() [3/4]

◆ Rectangle() [4/4]

◆ __init__()

Member Function Documentation

◆ __repr__()

◆ area()

◆ bottom() [1/2]

◆ bottom() [2/2]

◆ bottom_left()

◆ bottom_right()

◆ bounding_box() [1/2]

◆ bounding_box() [2/2]

◆ center() [1/2]

◆ center() [2/2]

◆ contains_point() [1/2]

◆ contains_point() [2/2]

◆ contains_rectangle()

◆ corners()

◆ distance_to() [1/2]

◆ distance_to() [2/2]

◆ expand() [1/2]

◆ expand() [2/2]

◆ from_center()

◆ intersection()

◆ intersects() [1/2]

◆ intersects() [2/2]

◆ is_empty()

◆ is_valid()

◆ left() [1/2]

◆ left() [2/2]

◆ operator!=()

◆ operator<()

◆ operator=()

◆ operator==()

◆ perimeter()

◆ right() [1/2]

◆ right() [2/2]

◆ scale() [1/2]

◆ scale() [2/2]

◆ to_polygon() [1/2]

◆ to_polygon() [2/2]

◆ to_string()

◆ top() [1/2]

◆ top() [2/2]

◆ top_left()

◆ top_right()

◆ translate()

◆ union_with()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ bottom

◆ height [1/2]

◆ height [2/2]

◆ width [1/2]

◆ width [2/2]

◆ x [1/2]

◆ x [2/2]

◆ y [1/2]

◆ y [2/2]

◆ init()

◆ repr()
