zlayout::components::SoC Class Reference

System-on-Chip (SoC) IP Block. More...

#include <ip_blocks.hpp>

Inheritance diagram for zlayout::components::SoC:

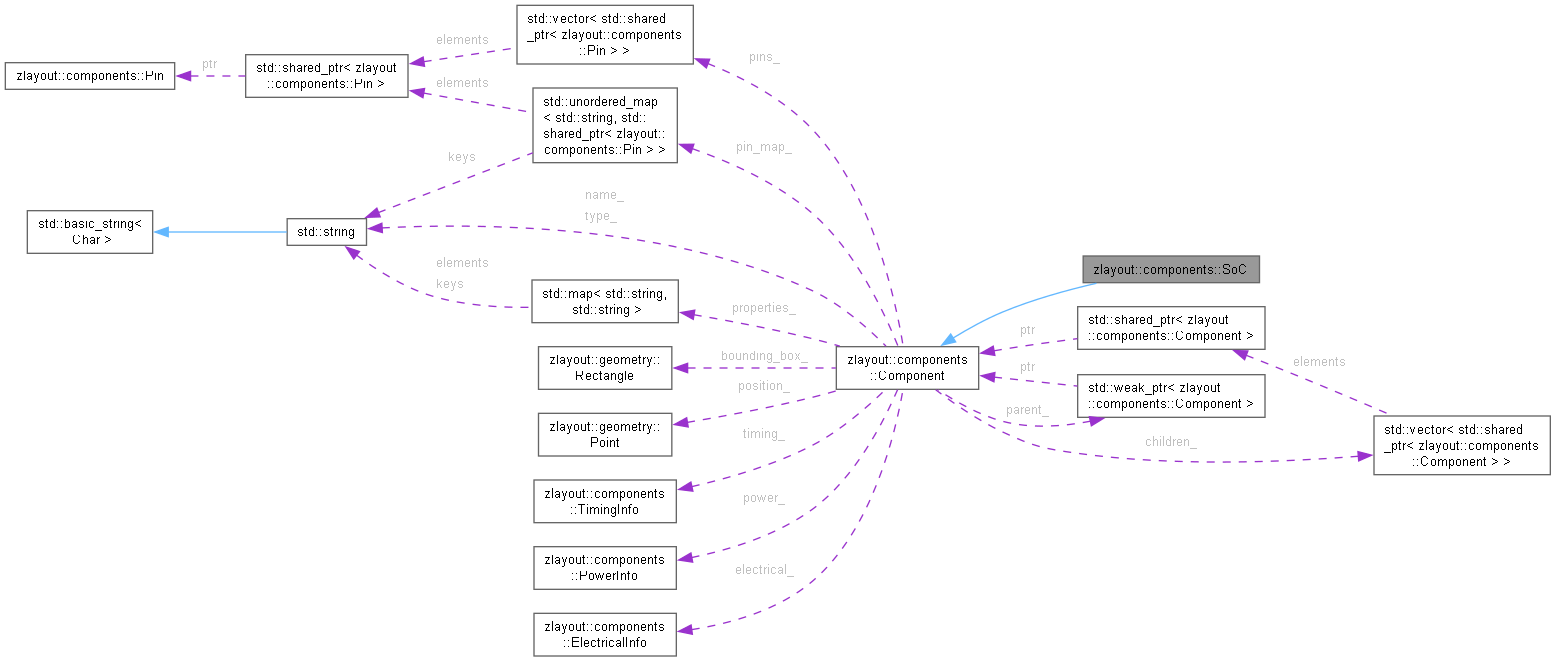

Collaboration diagram for zlayout::components::SoC:

Public Member Functions
	SoC (const std::string &name, const std::string &part_number)
void	addProcessorCore (std::shared_ptr< ProcessorCore > core)
void	addMemoryController (std::shared_ptr< MemoryController > controller)
void	addGPUCore (std::shared_ptr< GPUCore > gpu)
void	addDSPCore (std::shared_ptr< DSPCore > dsp)
void	addInterface (std::shared_ptr< CommunicationInterface > interface)
void	addPMU (std::shared_ptr< PowerManagementUnit > pmu)
const std::string &	getPartNumber () const
double	getTotalPower () const
double	getMaxPerformance () const
std::vector< std::string >	getCriticalPaths () const
geometry::Rectangle	calculateHierarchicalBoundingBox () const override
double	calculateTotalArea () const override
size_t	getTotalGateCount () const override
void	simulate (double time_step) override
std::string	getDescription () const override
Public Member Functions inherited from zlayout::components::Component
	Component (const std::string &name, ComponentCategory category)
virtual	~Component ()=default
const std::string &	getName () const
const std::string &	getType () const
ComponentCategory	getCategory () const
void	setName (const std::string &name)
void	setType (const std::string &type)
void	addChild (std::shared_ptr< Component > child)
void	removeChild (const std::string &name)
std::shared_ptr< Component >	getChild (const std::string &name) const
const std::vector< std::shared_ptr< Component > > &	getChildren () const
std::shared_ptr< Component >	getParent () const
void	setParent (std::shared_ptr< Component > parent)
const geometry::Rectangle &	getBoundingBox () const
void	setBoundingBox (const geometry::Rectangle &bbox)
geometry::Point	getPosition () const
void	setPosition (const geometry::Point &pos)
double	getRotation () const
void	setRotation (double angle)
void	addPin (std::shared_ptr< Pin > pin)
void	removePin (const std::string &name)
std::shared_ptr< Pin >	getPin (const std::string &name) const
const std::vector< std::shared_ptr< Pin > > &	getPins () const
void	setProperty (const std::string &key, const std::string &value)
std::string	getProperty (const std::string &key) const
const std::map< std::string, std::string > &	getProperties () const
void	setTimingInfo (const TimingInfo &timing)
const TimingInfo &	getTimingInfo () const
void	setPowerInfo (const PowerInfo &power)
const PowerInfo &	getPowerInfo () const
void	setElectricalInfo (const ElectricalInfo &electrical)
const ElectricalInfo &	getElectricalInfo () const
void	setTechNode (TechNode node)
TechNode	getTechNode () const
virtual void	reset ()
virtual std::vector< std::shared_ptr< Component > >	flattenHierarchy () const
virtual std::string	serialize () const
virtual void	deserialize (const std::string &data)

Additional Inherited Members
Protected Attributes inherited from zlayout::components::Component
std::string	name_
std::string	type_
ComponentCategory	category_
std::vector< std::shared_ptr< Component > >	children_
std::weak_ptr< Component >	parent_
geometry::Rectangle	bounding_box_
geometry::Point	position_
double	rotation_ = 0.0
std::vector< std::shared_ptr< Pin > >	pins_
std::unordered_map< std::string, std::shared_ptr< Pin > >	pin_map_
std::map< std::string, std::string >	properties_
TimingInfo	timing_
PowerInfo	power_
ElectricalInfo	electrical_
TechNode	tech_node_ = TechNode::um_7

Detailed Description

System-on-Chip (SoC) IP Block.

Definition at line 421 of file ip_blocks.hpp.

Constructor & Destructor Documentation

SoC()

zlayout::components::SoC::SoC	(	const std::string &	name,
		const std::string &	part_number )

Member Function Documentation

addDSPCore()

void zlayout::components::SoC::addDSPCore

(

std::shared_ptr< DSPCore >

dsp

)

addGPUCore()

void zlayout::components::SoC::addGPUCore

(

std::shared_ptr< GPUCore >

gpu

)

addInterface()

void zlayout::components::SoC::addInterface

(

std::shared_ptr< CommunicationInterface >

interface

)

addMemoryController()

void zlayout::components::SoC::addMemoryController

(

std::shared_ptr< MemoryController >

controller

)

addPMU()

void zlayout::components::SoC::addPMU

(

std::shared_ptr< PowerManagementUnit >

pmu

)

addProcessorCore()

void zlayout::components::SoC::addProcessorCore

(

std::shared_ptr< ProcessorCore >

core

)

calculateHierarchicalBoundingBox()

geometry::Rectangle zlayout::components::SoC::calculateHierarchicalBoundingBox ( ) const

overridevirtual

Reimplemented from zlayout::components::Component.

calculateTotalArea()

double zlayout::components::SoC::calculateTotalArea ( ) const

overridevirtual

Reimplemented from zlayout::components::Component.

getCriticalPaths()

std::vector< std::string > zlayout::components::SoC::getCriticalPaths

(

)

const

getDescription()

std::string zlayout::components::SoC::getDescription ( ) const

overridevirtual

Reimplemented from zlayout::components::Component.

getMaxPerformance()

double zlayout::components::SoC::getMaxPerformance

(

)

const

getPartNumber()

const std::string & zlayout::components::SoC::getPartNumber ( ) const

inline

Definition at line 434 of file ip_blocks.hpp.

getTotalGateCount()

size_t zlayout::components::SoC::getTotalGateCount ( ) const

overridevirtual

Reimplemented from zlayout::components::Component.

getTotalPower()

double zlayout::components::SoC::getTotalPower

(

)

const

simulate()

void zlayout::components::SoC::simulate ( double time_step )

overridevirtual

Reimplemented from zlayout::components::Component.

---

The documentation for this class was generated from the following file:

• include/zlayout/components/ip_blocks.hpp
