ip_blocks.hpp File Reference

Standard IP Blocks and Complex Digital Systems. More...

#include <zlayout/components/component.hpp>
#include <zlayout/components/digital_components.hpp>
#include <memory>
#include <string>
#include <vector>
#include <map>

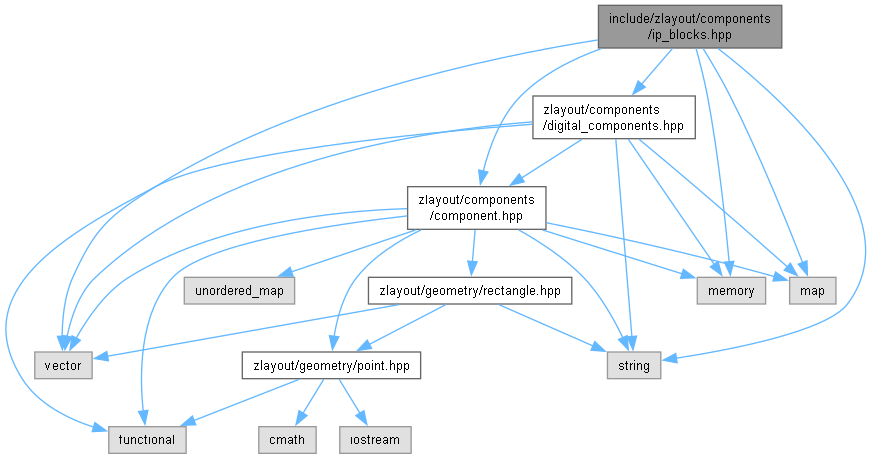

Include dependency graph for ip_blocks.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	zlayout::components::ProcessorCore
	Processor Core IP Block. More...
struct	zlayout::components::ProcessorCore::CacheConfig
class	zlayout::components::MemoryController
	Memory Controller IP Block. More...
struct	zlayout::components::MemoryController::TimingParams
class	zlayout::components::GPUCore
	GPU Core IP Block. More...
class	zlayout::components::DSPCore
	Digital Signal Processor (DSP) IP Block. More...
class	zlayout::components::CommunicationInterface
	Communication Interface IP Block. More...
class	zlayout::components::PowerManagementUnit
	Power Management Unit (PMU) IP Block. More...
class	zlayout::components::SoC
	System-on-Chip (SoC) IP Block. More...
class	zlayout::components::IPBlockFactory
	Standard IP Block Factory. More...

Namespaces
namespace	zlayout
	Main namespace for ZLayout library.
namespace	zlayout::components
namespace	zlayout::components::RealWorldCircuits
	Real-world circuit examples for timing optimization.

Enumerations
enum class	zlayout::components::CPUArchitecture {   zlayout::components::ARM_Cortex_A53 , zlayout::components::ARM_Cortex_A72 , zlayout::components::ARM_Cortex_A78 , zlayout::components::ARM_Cortex_M4 ,   zlayout::components::ARM_Cortex_M7 , zlayout::components::RISC_V_RV32I , zlayout::components::RISC_V_RV64I , zlayout::components::x86_64 ,   zlayout::components::Custom }
	CPU Architecture types. More...
enum class	zlayout::components::MemoryHierarchy {   zlayout::components::L1_Cache , zlayout::components::L2_Cache , zlayout::components::L3_Cache , zlayout::components::Main_Memory ,   zlayout::components::Storage }
	Memory hierarchy types. More...
enum class	zlayout::components::InterfaceType {   zlayout::components::SPI , zlayout::components::I2C , zlayout::components::UART , zlayout::components::USB ,   zlayout::components::PCIe , zlayout::components::Ethernet , zlayout::components::WiFi , zlayout::components::Bluetooth ,   zlayout::components::CAN , zlayout::components::Custom }
	Communication interface types. More...

Functions
std::shared_ptr< Component >	zlayout::components::RealWorldCircuits::createCPUDesign (const std::string &name, size_t core_count=4)
	Create a realistic CPU design with proper timing constraints.
std::shared_ptr< Component >	zlayout::components::RealWorldCircuits::createMemorySubsystem (const std::string &name)
	Create a memory subsystem with realistic timing.
std::shared_ptr< Component >	zlayout::components::RealWorldCircuits::createGPUDesign (const std::string &name)
	Create a graphics processing unit with compute pipelines.
std::shared_ptr< Component >	zlayout::components::RealWorldCircuits::createCommunicationSubsystem (const std::string &name)
	Create a communication subsystem with multiple interfaces.
std::shared_ptr< Component >	zlayout::components::RealWorldCircuits::createSmartphoneSoC (const std::string &name)
	Create a complete smartphone SoC.
std::shared_ptr< Component >	zlayout::components::RealWorldCircuits::createServerProcessor (const std::string &name)
	Create a server processor with multiple cores.
std::shared_ptr< Component >	zlayout::components::RealWorldCircuits::createIoTMicrocontroller (const std::string &name)
	Create an IoT microcontroller design.

Detailed Description

Standard IP Blocks and Complex Digital Systems.

This file contains implementations of standard IP blocks used in modern digital systems, including processors, memory controllers, and communication interfaces.

Definition in file ip_blocks.hpp.
