Polygon class supporting both convex and concave polygons. More...

#include <polygon.hpp>

Collaboration diagram for zlayout::geometry::Polygon:

Public Member Functions
	Polygon ()=default
	Default constructor - creates empty polygon.
	Polygon (const std::vector< Point > &vertices)
	Constructor from vertex list.
	Polygon (std::initializer_list< Point > vertices)
	Constructor from initializer list.
	Polygon (const Polygon &other)=default
	Copy constructor.
	Polygon (Polygon &&other) noexcept=default
	Move constructor.
Polygon &	operator= (const Polygon &other)=default
	Assignment operator.
Polygon &	operator= (Polygon &&other) noexcept=default
	Move assignment operator.
bool	operator== (const Polygon &other) const
	Equality operator.
bool	operator!= (const Polygon &other) const
	Inequality operator.
size_t	vertex_count () const
	Get number of vertices.
bool	is_empty () const
	Check if polygon is empty.
bool	is_valid () const
	Check if polygon is valid (at least 3 vertices)
std::vector< std::pair< Point, Point > >	edges () const
	Get polygon edges as pairs of consecutive vertices.
double	area () const
	Calculate polygon area using shoelace formula.
double	signed_area () const
	Calculate signed area (preserves orientation)
double	perimeter () const
	Calculate polygon perimeter.
Point	centroid () const
	Calculate polygon centroid.
Rectangle	bounding_box () const
	Calculate axis-aligned bounding box.
bool	is_convex () const
	Check if polygon is convex.
bool	is_clockwise () const
	Check if polygon is clockwise oriented.
bool	is_counterclockwise () const
	Check if polygon is counterclockwise oriented.
bool	is_simple () const
	Check if polygon is simple (no self-intersections)
bool	contains_point (const Point &point) const
	Check if point is inside polygon (ray casting algorithm)
bool	point_on_boundary (const Point &point, double tolerance=Point::TOLERANCE) const
	Check if point is on polygon boundary.
std::vector< size_t >	get_sharp_angles (double threshold_degrees=30.0) const
	Find vertices with sharp angles.
double	vertex_angle (size_t vertex_index) const
	Calculate angle at a specific vertex.
std::vector< double >	all_vertex_angles () const
	Get all vertex angles.
double	distance_to (const Polygon &other) const
	Calculate minimum distance to another polygon.
double	distance_to (const Point &point) const
	Calculate minimum distance to a point.
double	distance_to_line (const Point &line_start, const Point &line_end) const
	Calculate minimum distance to a line segment.
Point	closest_point_to (const Point &point) const
	Find closest point on polygon boundary to given point.

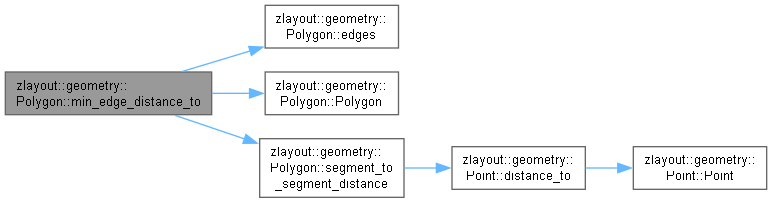

double	min_edge_distance_to (const Polygon &other) const
	Calculate minimum distance between this polygon's edges and another polygon's edges.
std::vector< std::tuple< Point, Point, double > >	find_narrow_regions (const Polygon &other, double threshold_distance) const
	Find narrow regions where edges are too close.
bool	intersects (const Polygon &other) const
	Check if this polygon intersects with another polygon.
std::vector< Point >	intersection_points (const Polygon &other) const
	Find intersection points between polygon edges.

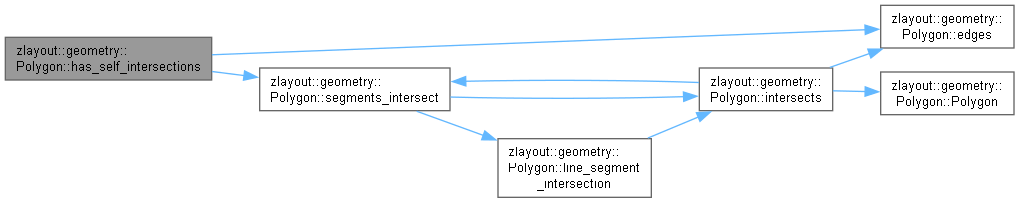

bool	has_self_intersections () const
	Check if polygon edges intersect (for self-intersection detection)
Polygon	translate (const Point &offset) const
	Translate polygon by given offset.
Polygon	rotate (double angle) const
	Rotate polygon around origin by given angle.
Polygon	rotate_around (const Point &center, double angle) const
	Rotate polygon around a specific center point.
Polygon	scale (double factor) const
	Scale polygon by given factor around its centroid.
Polygon	scale (double x_factor, double y_factor) const
	Scale polygon by different factors in X and Y.
Polygon	reverse () const
	Reverse vertex order (change orientation)
Polygon	simplify (double tolerance=Point::TOLERANCE) const
	Simplify polygon by removing collinear vertices.
Polygon	ensure_counterclockwise () const
	Ensure polygon has counterclockwise orientation.
Polygon	ensure_clockwise () const
	Ensure polygon has clockwise orientation.
void	add_vertex (const Point &vertex)
	Add vertex to polygon.
void	insert_vertex (size_t index, const Point &vertex)
	Insert vertex at specific index.
void	remove_vertex (size_t index)
	Remove vertex at specific index.
void	clear ()
	Clear all vertices.
std::string	to_string () const
	Get string representation.
	__init__ (self, List[Point] vertices)
str	__repr__ (self)
List[Tuple[Point, Point]]	edges (self)
Rectangle	bounding_box (self)
float	area (self)
bool	is_convex (self)
bool	contains_point (self, Point point)
List[int]	get_sharp_angles (self, float threshold_degrees=30.0)

Static Public Member Functions

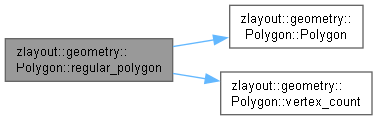

static Polygon	regular_polygon (const Point &center, double radius, size_t vertex_count)
	Create regular polygon with given center, radius, and vertex count.

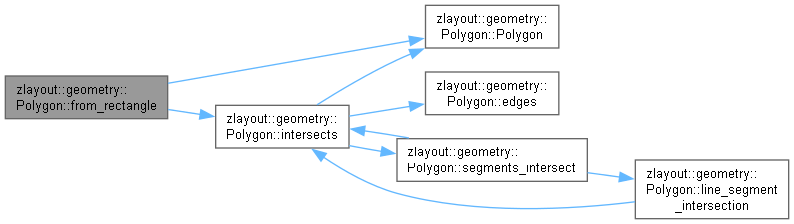

static Polygon	from_rectangle (const Rectangle &rect)
	Create polygon from rectangle.

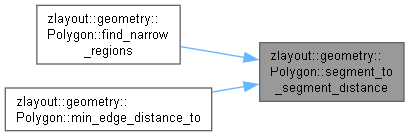

static double	segment_to_segment_distance (const Point &seg1_start, const Point &seg1_end, const Point &seg2_start, const Point &seg2_end)
	Helper function to calculate distance between two line segments.

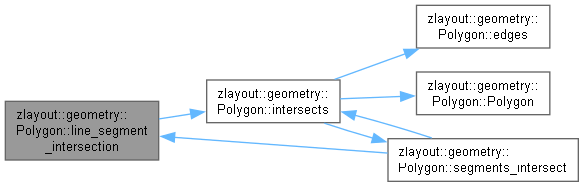

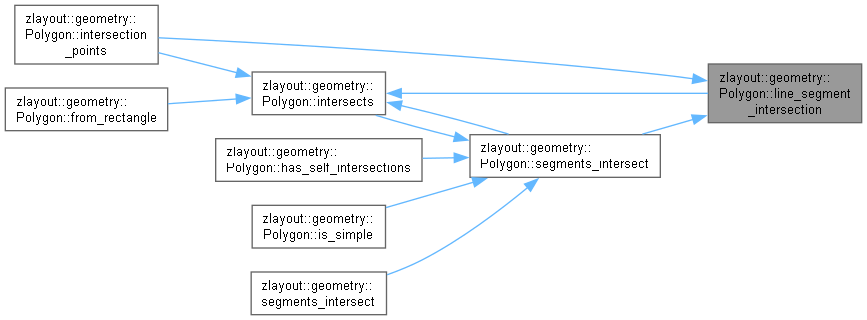

static Point	line_segment_intersection (const Point &seg1_start, const Point &seg1_end, const Point &seg2_start, const Point &seg2_end, bool &intersects)
	Helper function to find intersection point of two line segments.

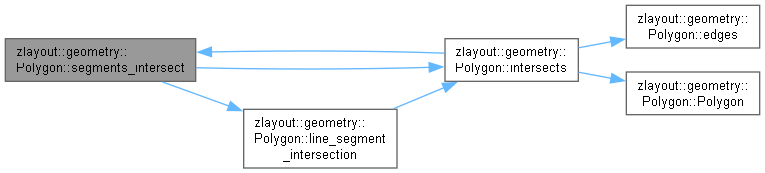

static bool	segments_intersect (const Point &seg1_start, const Point &seg1_end, const Point &seg2_start, const Point &seg2_end)
	Helper function to check if two line segments intersect.

Public Attributes
std::vector< Point >	vertices
	Polygon vertices in order.
	vertices = vertices.copy()

Protected Member Functions
bool	_point_on_edge (self, Point point, Point edge_start, Point edge_end)

Friends
std::ostream &	operator<< (std::ostream &os, const Polygon &polygon)
	Stream output operator.

Detailed Description

Polygon class supporting both convex and concave polygons.

Polygon class supporting both convex and concave polygons.

Represents a polygon in 2D space with arbitrary vertex count. Supports complex geometric operations, sharp angle detection, and various polygon analysis functions essential for EDA applications.

Definition at line 25 of file polygon.hpp.

Constructor & Destructor Documentation

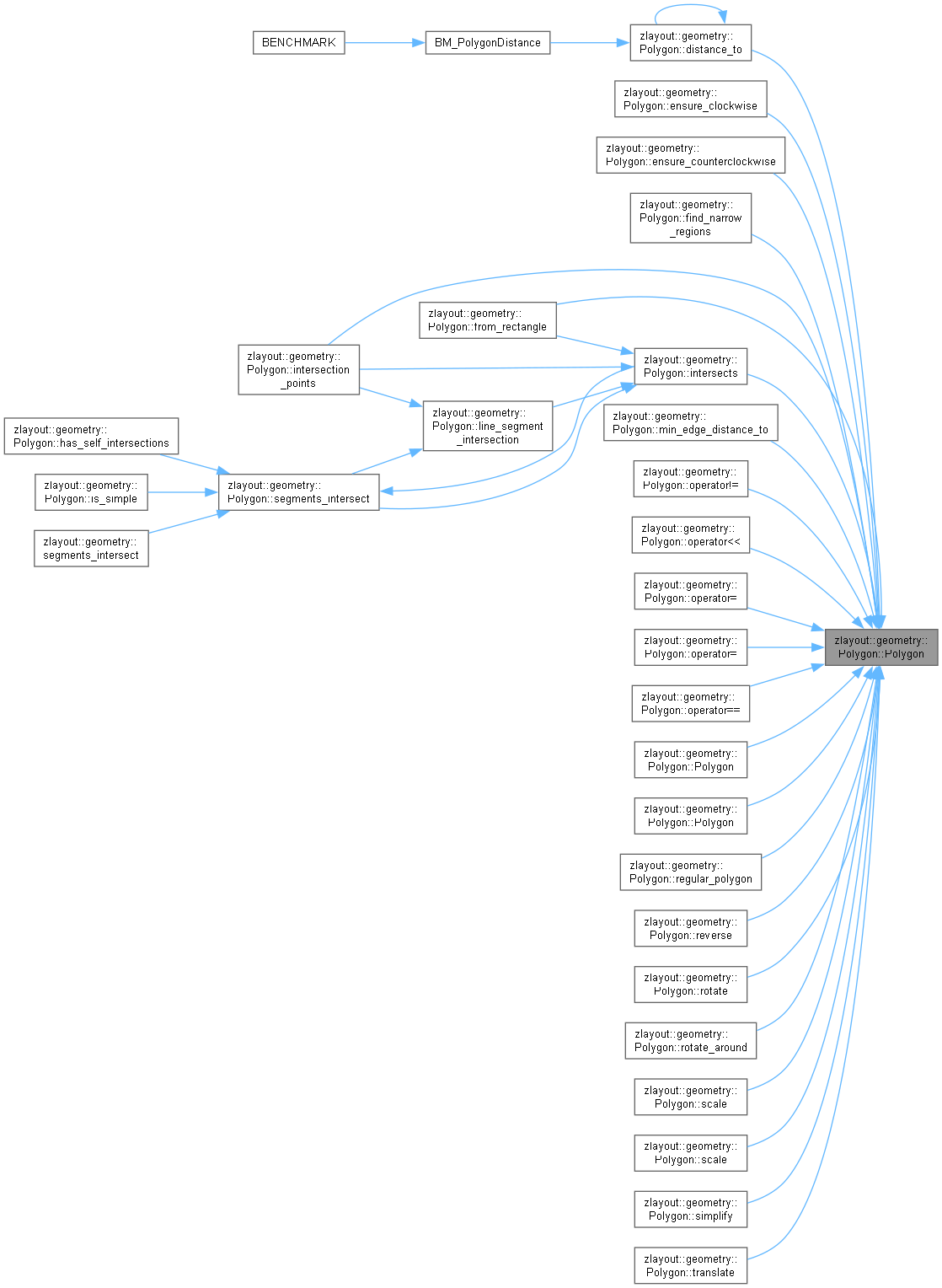

◆ Polygon() [1/5]

zlayout::geometry::Polygon::Polygon ( )

default

Default constructor - creates empty polygon.

Here is the caller graph for this function:

◆ Polygon() [2/5]

zlayout::geometry::Polygon::Polygon ( const std::vector< Point > & vertices )

explicit

Constructor from vertex list.

Parameters

vertices Vector of polygon vertices

Definition at line 22 of file polygon.cpp.

◆ Polygon() [3/5]

zlayout::geometry::Polygon::Polygon ( std::initializer_list< Point > vertices )

Constructor from initializer list.

Parameters

vertices Initializer list of vertices

Definition at line 24 of file polygon.cpp.

◆ Polygon() [4/5]

zlayout::geometry::Polygon::Polygon ( const Polygon & other )

default

Copy constructor.

Here is the call graph for this function:

◆ Polygon() [5/5]

zlayout::geometry::Polygon::Polygon ( Polygon && other )

defaultnoexcept

Move constructor.

Here is the call graph for this function:

◆ init()

zlayout.geometry.Polygon.__init__	(		self,
		List[Point]	vertices )

Definition at line 125 of file geometry.py.

Member Function Documentation

◆ repr()

str zlayout.geometry.Polygon.__repr__ ( self )

Definition at line 130 of file geometry.py.

◆ _point_on_edge()

bool zlayout.geometry.Polygon._point_on_edge	(		self,
		Point	point,
		Point	edge_start,
		Point	edge_end )

protected

Check if a point lies on an edge.

Definition at line 223 of file geometry.py.

Here is the caller graph for this function:

◆ add_vertex()

void zlayout::geometry::Polygon::add_vertex ( const Point & vertex )

Add vertex to polygon.

Parameters

vertex Vertex to add

Definition at line 379 of file polygon.cpp.

◆ all_vertex_angles()

std::vector< double > zlayout::geometry::Polygon::all_vertex_angles ( ) const

Get all vertex angles.

Returns: Vector of angles in degrees for each vertex

Definition at line 210 of file polygon.cpp.

Here is the call graph for this function:

◆ area() [1/2]

float zlayout.geometry.Polygon.area ( self )

Calculate polygon area using shoelace formula.

Definition at line 154 of file geometry.py.

◆ area() [2/2]

double zlayout::geometry::Polygon::area ( ) const

Calculate polygon area using shoelace formula.

Returns: Polygon area (positive for counterclockwise, negative for clockwise)

Definition at line 47 of file polygon.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bounding_box() [1/2]

Rectangle zlayout.geometry.Polygon.bounding_box ( self )

Calculate axis-aligned bounding box.

Definition at line 142 of file geometry.py.

◆ bounding_box() [2/2]

Rectangle zlayout::geometry::Polygon::bounding_box ( ) const

Calculate axis-aligned bounding box.

Definition at line 84 of file polygon.cpp.

◆ centroid()

Point zlayout::geometry::Polygon::centroid ( ) const

Calculate polygon centroid.

Definition at line 73 of file polygon.cpp.

◆ clear()

void zlayout::geometry::Polygon::clear ( )

inline

Clear all vertices.

Definition at line 350 of file polygon.hpp.

◆ closest_point_to()

Point zlayout::geometry::Polygon::closest_point_to ( const Point & point ) const

Find closest point on polygon boundary to given point.

Parameters

point Target point

Returns: Closest point on polygon boundary

Definition at line 266 of file polygon.cpp.

◆ contains_point() [1/2]

bool zlayout.geometry.Polygon.contains_point	(		self,
		Point	point )

Check if point is inside polygon using ray casting.

Definition at line 193 of file geometry.py.

Here is the call graph for this function:

◆ contains_point() [2/2]

bool zlayout::geometry::Polygon::contains_point ( const Point & point ) const

Check if point is inside polygon (ray casting algorithm)

Parameters

point Point to test

Returns: true if point is inside polygon

Definition at line 146 of file polygon.cpp.

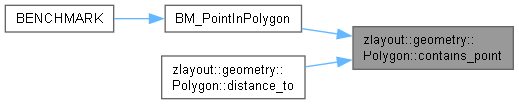

Here is the caller graph for this function:

◆ distance_to() [1/2]

double zlayout::geometry::Polygon::distance_to ( const Point & point ) const

Calculate minimum distance to a point.

Parameters

point Target point

Returns: Minimum distance to point

Definition at line 239 of file polygon.cpp.

Here is the call graph for this function:

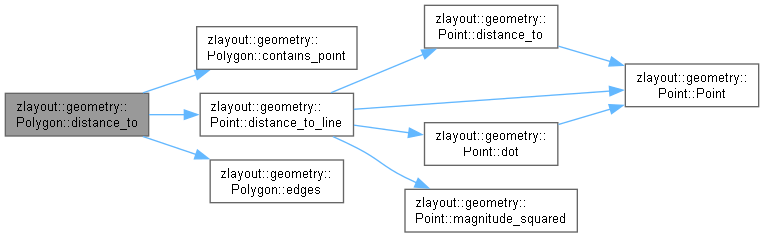

◆ distance_to() [2/2]

double zlayout::geometry::Polygon::distance_to ( const Polygon & other ) const

Calculate minimum distance to another polygon.

Parameters

other Target polygon

Returns: Minimum distance between polygons

Definition at line 219 of file polygon.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ distance_to_line()

double zlayout::geometry::Polygon::distance_to_line	(	const Point &	line_start,
		const Point &	line_end ) const

Calculate minimum distance to a line segment.

Parameters

line_start	Start point of line segment
line_end	End point of line segment

Returns: Minimum distance to line segment

Definition at line 255 of file polygon.cpp.

◆ edges() [1/2]

List[Tuple[Point, Point]] zlayout.geometry.Polygon.edges ( self )

Get all edges as (start, end) point pairs.

Definition at line 134 of file geometry.py.

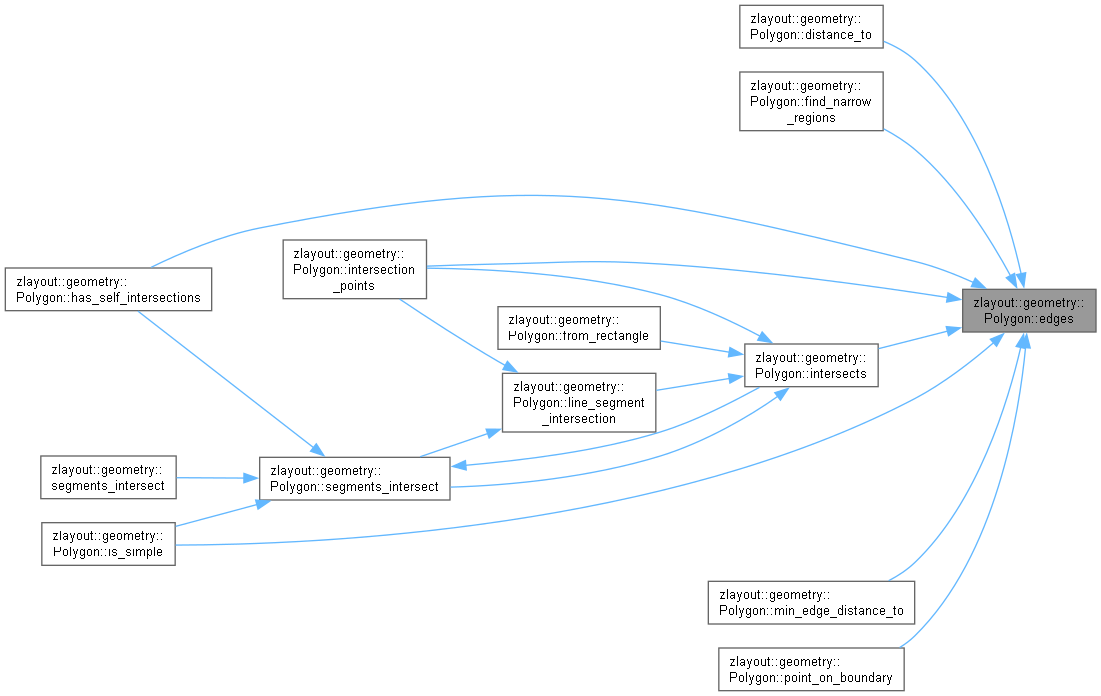

◆ edges() [2/2]

std::vector< std::pair< Point, Point > > zlayout::geometry::Polygon::edges ( ) const

Get polygon edges as pairs of consecutive vertices.

Returns: Vector of edge pairs (start_point, end_point)

Definition at line 36 of file polygon.cpp.

Here is the caller graph for this function:

◆ ensure_clockwise()

Polygon zlayout::geometry::Polygon::ensure_clockwise ( ) const

Ensure polygon has clockwise orientation.

Returns: Polygon with clockwise orientation

Here is the call graph for this function:

◆ ensure_counterclockwise()

Polygon zlayout::geometry::Polygon::ensure_counterclockwise ( ) const

Ensure polygon has counterclockwise orientation.

Returns: Polygon with counterclockwise orientation

Here is the call graph for this function:

◆ find_narrow_regions()

std::vector< std::tuple< Point, Point, double > > zlayout::geometry::Polygon::find_narrow_regions	(	const Polygon &	other,
		double	threshold_distance ) const

Find narrow regions where edges are too close.

Parameters

other	Target polygon
threshold_distance	Maximum allowed distance

Returns: Vector of (point1, point2, distance) for narrow regions

Definition at line 301 of file polygon.cpp.

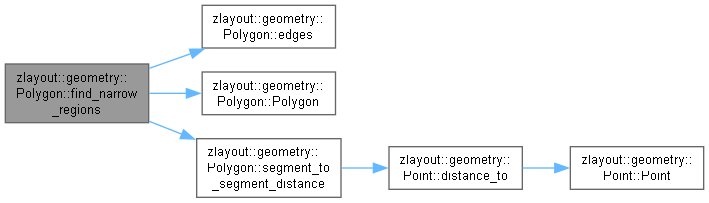

Here is the call graph for this function:

◆ from_rectangle()

Polygon zlayout::geometry::Polygon::from_rectangle ( const Rectangle & rect )

static

Create polygon from rectangle.

Parameters

rect	Rectangle to convert

Returns: Polygon with rectangle vertices

Here is the call graph for this function:

◆ get_sharp_angles() [1/2]

List[int] zlayout.geometry.Polygon.get_sharp_angles	(		self,
		float	threshold_degrees = 30.0 )

Find vertices with sharp angles or boundary angles.

For traditional sharp angle detection (small thresholds < 60°):
finds acute angles smaller than threshold.
For boundary angle detection (large thresholds ≥ 60°):
finds angles larger than threshold.

Definition at line 229 of file geometry.py.

◆ get_sharp_angles() [2/2]

std::vector< size_t > zlayout::geometry::Polygon::get_sharp_angles ( double threshold_degrees = 30.0 ) const

Find vertices with sharp angles.

Parameters

threshold_degrees Angle threshold in degrees (angles less than this are considered sharp)

Returns: Vector of vertex indices with sharp angles

Definition at line 175 of file polygon.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ has_self_intersections()

bool zlayout::geometry::Polygon::has_self_intersections ( ) const

Check if polygon edges intersect (for self-intersection detection)

Returns: true if polygon has self-intersecting edges

Definition at line 361 of file polygon.cpp.

Here is the call graph for this function:

◆ insert_vertex()

void zlayout::geometry::Polygon::insert_vertex	(	size_t	index,
		const Point &	vertex )

Insert vertex at specific index.

Parameters

index	Index to insert at
vertex	Vertex to insert

Definition at line 383 of file polygon.cpp.

◆ intersection_points()

std::vector< Point > zlayout::geometry::Polygon::intersection_points ( const Polygon & other ) const

Find intersection points between polygon edges.

Parameters

other Target polygon

Returns: Vector of intersection points

Definition at line 341 of file polygon.cpp.

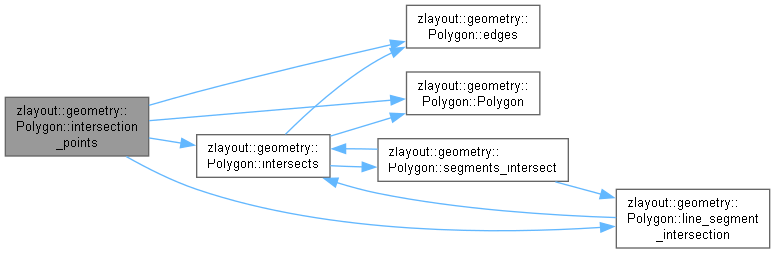

Here is the call graph for this function:

◆ intersects()

bool zlayout::geometry::Polygon::intersects ( const Polygon & other ) const

Check if this polygon intersects with another polygon.

Parameters

other Target polygon

Returns: true if polygons intersect

Definition at line 325 of file polygon.cpp.

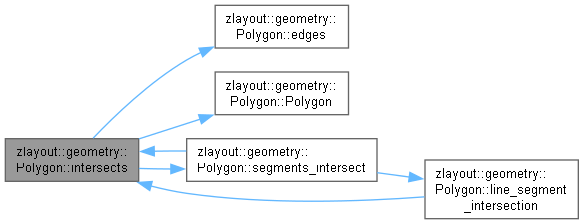

Here is the call graph for this function:

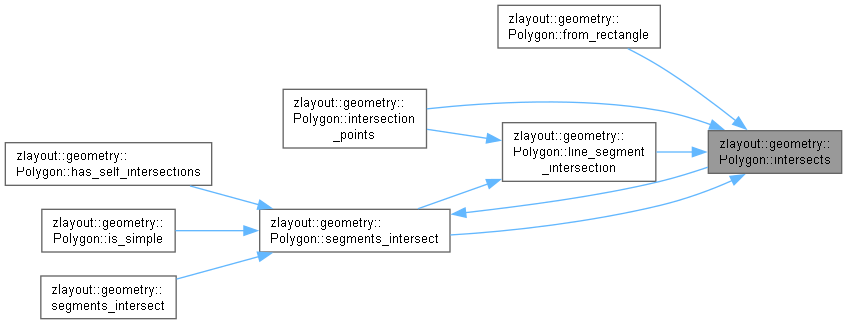

Here is the caller graph for this function:

◆ is_clockwise()

bool zlayout::geometry::Polygon::is_clockwise ( ) const

Check if polygon is clockwise oriented.

Returns: true if polygon vertices are in clockwise order

Definition at line 124 of file polygon.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_convex() [1/2]

bool zlayout.geometry.Polygon.is_convex ( self )

Check if polygon is convex.

Definition at line 167 of file geometry.py.

◆ is_convex() [2/2]

bool zlayout::geometry::Polygon::is_convex ( ) const

Check if polygon is convex.

Returns: true if polygon is convex

Definition at line 101 of file polygon.cpp.

◆ is_counterclockwise()

bool zlayout::geometry::Polygon::is_counterclockwise ( ) const

inline

Check if polygon is counterclockwise oriented.

Definition at line 142 of file polygon.hpp.

Here is the call graph for this function:

◆ is_empty()

bool zlayout::geometry::Polygon::is_empty ( ) const

inline

Check if polygon is empty.

Definition at line 86 of file polygon.hpp.

◆ is_simple()

bool zlayout::geometry::Polygon::is_simple ( ) const

Check if polygon is simple (no self-intersections)

Returns: true if polygon has no self-intersections

Definition at line 128 of file polygon.cpp.

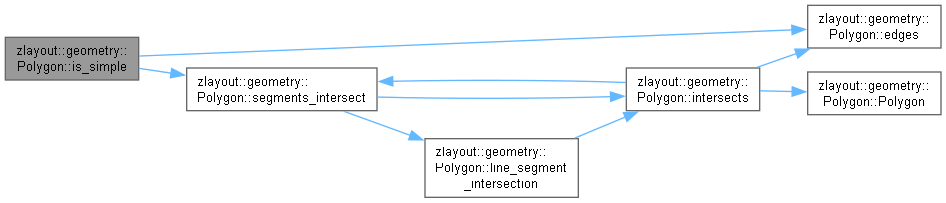

Here is the call graph for this function:

◆ is_valid()

bool zlayout::geometry::Polygon::is_valid ( ) const

inline

Check if polygon is valid (at least 3 vertices)

Definition at line 91 of file polygon.hpp.

◆ line_segment_intersection()

Point zlayout::geometry::Polygon::line_segment_intersection	(	const Point &	seg1_start,
		const Point &	seg1_end,
		const Point &	seg2_start,
		const Point &	seg2_end,
		bool &	intersects )

static

Helper function to find intersection point of two line segments.

Definition at line 421 of file polygon.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ min_edge_distance_to()

double zlayout::geometry::Polygon::min_edge_distance_to ( const Polygon & other ) const

Calculate minimum distance between this polygon's edges and another polygon's edges.

Parameters

other Target polygon

Returns: Minimum edge-to-edge distance

Definition at line 284 of file polygon.cpp.

Here is the call graph for this function:

◆ operator!=()

bool zlayout::geometry::Polygon::operator!= ( const Polygon & other ) const

Inequality operator.

Definition at line 31 of file polygon.cpp.

Here is the call graph for this function:

◆ operator=() [1/2]

Polygon & zlayout::geometry::Polygon::operator= ( const Polygon & other )

default

Assignment operator.

Here is the call graph for this function:

◆ operator=() [2/2]

Polygon & zlayout::geometry::Polygon::operator= ( Polygon && other )

defaultnoexcept

Move assignment operator.

Here is the call graph for this function:

◆ operator==()

bool zlayout::geometry::Polygon::operator== ( const Polygon & other ) const

Equality operator.

Definition at line 27 of file polygon.cpp.

Here is the call graph for this function:

◆ perimeter()

double zlayout::geometry::Polygon::perimeter ( ) const

Calculate polygon perimeter.

Definition at line 62 of file polygon.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ point_on_boundary()

bool zlayout::geometry::Polygon::point_on_boundary	(	const Point &	point,
		double	tolerance = Point::TOLERANCE ) const

Check if point is on polygon boundary.

Parameters

point	Point to test
tolerance	Distance tolerance for boundary check

Returns: true if point is on polygon boundary

Definition at line 164 of file polygon.cpp.

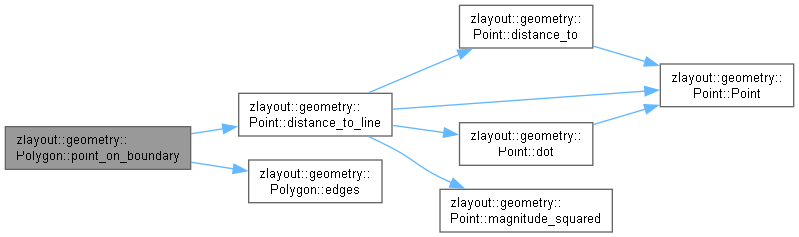

Here is the call graph for this function:

◆ regular_polygon()

Polygon zlayout::geometry::Polygon::regular_polygon	(	const Point &	center,
		double	radius,
		size_t	vertex_count )

static

Create regular polygon with given center, radius, and vertex count.

Parameters

center	Center point
radius	Radius from center to vertices
vertex_count	Number of vertices

Returns: Regular polygon

Here is the call graph for this function:

◆ remove_vertex()

void zlayout::geometry::Polygon::remove_vertex ( size_t index )

Remove vertex at specific index.

Parameters

index Index of vertex to remove

Definition at line 389 of file polygon.cpp.

◆ reverse()

Polygon zlayout::geometry::Polygon::reverse ( ) const

Reverse vertex order (change orientation)

Returns: Polygon with reversed vertex order

Here is the call graph for this function:

◆ rotate()

Polygon zlayout::geometry::Polygon::rotate ( double angle ) const

Rotate polygon around origin by given angle.

Parameters

angle Rotation angle in radians

Returns: Rotated polygon

Here is the call graph for this function:

◆ rotate_around()

Polygon zlayout::geometry::Polygon::rotate_around	(	const Point &	center,
		double	angle ) const

Rotate polygon around a specific center point.

Parameters

center	Center of rotation
angle	Rotation angle in radians

Returns: Rotated polygon

Here is the call graph for this function:

◆ scale() [1/2]

Polygon zlayout::geometry::Polygon::scale ( double factor ) const

Scale polygon by given factor around its centroid.

Parameters

factor Scale factor

Returns: Scaled polygon

Here is the call graph for this function:

◆ scale() [2/2]

Polygon zlayout::geometry::Polygon::scale	(	double	x_factor,
		double	y_factor ) const

Scale polygon by different factors in X and Y.

Parameters

x_factor	X scale factor
y_factor	Y scale factor

Returns: Scaled polygon

Here is the call graph for this function:

◆ segment_to_segment_distance()

double zlayout::geometry::Polygon::segment_to_segment_distance	(	const Point &	seg1_start,
		const Point &	seg1_end,
		const Point &	seg2_start,
		const Point &	seg2_end )

static

Helper function to calculate distance between two line segments.

Definition at line 411 of file polygon.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ segments_intersect()

bool zlayout::geometry::Polygon::segments_intersect	(	const Point &	seg1_start,
		const Point &	seg1_end,
		const Point &	seg2_start,
		const Point &	seg2_end )

static

Helper function to check if two line segments intersect.

Definition at line 449 of file polygon.cpp.

Here is the call graph for this function:

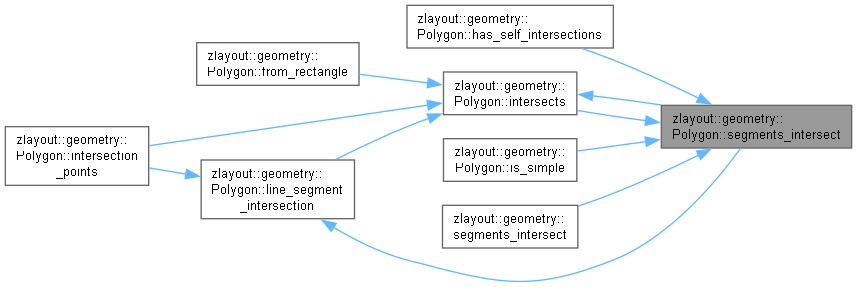

Here is the caller graph for this function:

◆ signed_area()

double zlayout::geometry::Polygon::signed_area ( ) const

Calculate signed area (preserves orientation)

Definition at line 51 of file polygon.cpp.

Here is the call graph for this function:

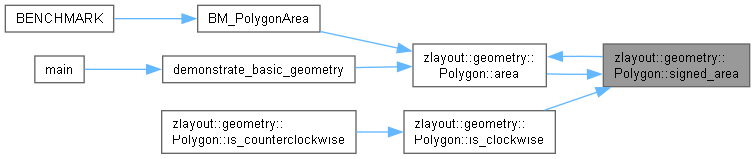

Here is the caller graph for this function:

◆ simplify()

Polygon zlayout::geometry::Polygon::simplify ( double tolerance = Point::TOLERANCE ) const

Simplify polygon by removing collinear vertices.

Parameters

tolerance Tolerance for collinearity check

Returns: Simplified polygon

Here is the call graph for this function:

◆ to_string()

std::string zlayout::geometry::Polygon::to_string ( ) const

Get string representation.

Definition at line 395 of file polygon.cpp.

Here is the caller graph for this function:

◆ translate()

Polygon zlayout::geometry::Polygon::translate ( const Point & offset ) const

Translate polygon by given offset.

Parameters

offset Translation vector

Returns: Translated polygon

Here is the call graph for this function:

◆ vertex_angle()

double zlayout::geometry::Polygon::vertex_angle ( size_t vertex_index ) const

Calculate angle at a specific vertex.

Parameters

vertex_index Index of vertex to calculate angle for

Returns: Angle in degrees (0-180)

Definition at line 189 of file polygon.cpp.

Here is the caller graph for this function:

◆ vertex_count()

size_t zlayout::geometry::Polygon::vertex_count ( ) const

inline

Get number of vertices.

Definition at line 81 of file polygon.hpp.

Here is the caller graph for this function:

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Polygon &	polygon )

friend

Stream output operator.

Definition at line 406 of file polygon.cpp.

Member Data Documentation

◆ vertices [1/2]

zlayout.geometry.Polygon.vertices = vertices.copy()

Definition at line 128 of file geometry.py.

◆ vertices [2/2]

std::vector<Point> zlayout::geometry::Polygon::vertices

Polygon vertices in order.

Definition at line 27 of file polygon.hpp.

The documentation for this class was generated from the following files:

include/zlayout/geometry/polygon.hpp
zlayout/geometry.py
src/geometry/polygon.cpp
