zlayout::geometry Namespace Reference

Classes
class	Point
	2D point with high-precision coordinates and utility methods More...
struct	PointHash
	Hash function for Point (for use in std::unordered_map, etc.) More...
class	Polygon
	Polygon class supporting both convex and concave polygons. More...
struct	PolygonHash
	Hash function for Polygon (for use in std::unordered_map, etc.) More...
class	Rectangle
	Axis-aligned rectangle for bounding boxes and simple EDA components. More...
struct	RectangleHash
	Hash function for Rectangle (for use in std::unordered_map, etc.) More...

Functions
double	distance (const Point &p1, const Point &p2)
	Calculate distance between two points.
Point	midpoint (const Point &p1, const Point &p2)
	Calculate midpoint between two points.
double	angle_between_points (const Point &p1, const Point &p2, const Point &p3)
	Calculate angle between three points (p1-p2-p3)
bool	are_collinear (const Point &p1, const Point &p2, const Point &p3)
	Check if three points are collinear.
int	orientation (const Point &p1, const Point &p2, const Point &p3)
	Calculate orientation of three points.
bool	line_intersection (const Point &line1_start, const Point &line1_end, const Point &line2_start, const Point &line2_end, Point &intersection)
	Calculate intersection point of two infinite lines.
bool	segments_intersect (const Point &seg1_start, const Point &seg1_end, const Point &seg2_start, const Point &seg2_end)
	Check if two line segments intersect.
double	angle_between_vectors (const Point &v1, const Point &v2)
	Calculate angle between two vectors in degrees.
std::ostream &	operator<< (std::ostream &os, const Point &point)
std::ostream &	operator<< (std::ostream &os, const Polygon &polygon)
std::ostream &	operator<< (std::ostream &os, const Rectangle &rect)

Variables
bool	HAS_NUMPY = True

Detailed Description

Basic geometric data structures for layout processing.

Function Documentation

angle_between_points()

double zlayout::geometry::angle_between_points	(	const Point &	p1,
		const Point &	p2,
		const Point &	p3 )

Calculate angle between three points (p1-p2-p3)

Parameters

p1	First point
p2	Vertex point
p3	Third point

Returns

Angle in radians

Definition at line 169 of file point.cpp.

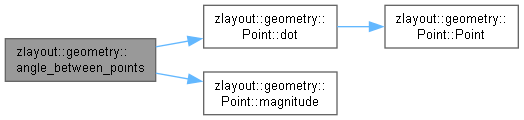

Here is the call graph for this function:

angle_between_vectors()

double zlayout::geometry::angle_between_vectors	(	const Point &	v1,
		const Point &	v2 )

Calculate angle between two vectors in degrees.

Parameters

v1	First vector
v2	Second vector

Returns

Angle in degrees (0-180)

Definition at line 473 of file polygon.cpp.

are_collinear()

bool zlayout::geometry::are_collinear	(	const Point &	p1,
		const Point &	p2,
		const Point &	p3 )

Check if three points are collinear.

Parameters

p1	First point
p2	Second point
p3	Third point

Returns

true if points are collinear within tolerance

Definition at line 190 of file point.cpp.

Here is the call graph for this function:

distance()

double zlayout::geometry::distance	(	const Point &	p1,
		const Point &	p2 )

Calculate distance between two points.

Parameters

p1	First point
p2	Second point

Returns

Distance between points

Definition at line 161 of file point.cpp.

Here is the call graph for this function:

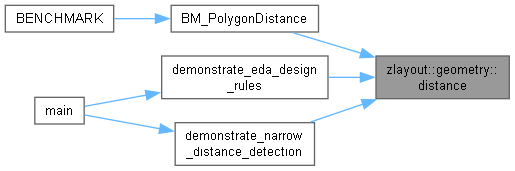

Here is the caller graph for this function:

line_intersection()

bool zlayout::geometry::line_intersection	(	const Point &	line1_start,
		const Point &	line1_end,
		const Point &	line2_start,
		const Point &	line2_end,
		Point &	intersection )

Calculate intersection point of two infinite lines.

Parameters

line1_start	First point on line 1
line1_end	Second point on line 1
line2_start	First point on line 2
line2_end	Second point on line 2
intersection	Output intersection point

Returns

true if lines intersect (not parallel)

midpoint()

Point zlayout::geometry::midpoint	(	const Point &	p1,
		const Point &	p2 )

Calculate midpoint between two points.

Parameters

p1	First point
p2	Second point

Returns

Midpoint

Definition at line 165 of file point.cpp.

operator<<() [1/3]

std::ostream & zlayout::geometry::operator<<	(	std::ostream &	os,
		const Point &	point )

Definition at line 144 of file point.cpp.

operator<<() [2/3]

std::ostream & zlayout::geometry::operator<<	(	std::ostream &	os,
		const Polygon &	polygon )

Definition at line 406 of file polygon.cpp.

operator<<() [3/3]

std::ostream & zlayout::geometry::operator<<	(	std::ostream &	os,
		const Rectangle &	rect )

Definition at line 210 of file rectangle.cpp.

orientation()

int zlayout::geometry::orientation	(	const Point &	p1,
		const Point &	p2,
		const Point &	p3 )

Calculate orientation of three points.

Parameters

p1	First point
p2	Second point
p3	Third point

Returns

0 if collinear, 1 if clockwise, 2 if counterclockwise

Definition at line 198 of file point.cpp.

Here is the call graph for this function:

segments_intersect()

bool zlayout::geometry::segments_intersect	(	const Point &	seg1_start,
		const Point &	seg1_end,
		const Point &	seg2_start,
		const Point &	seg2_end )

Check if two line segments intersect.

Parameters

seg1_start	Start of first segment
seg1_end	End of first segment
seg2_start	Start of second segment
seg2_end	End of second segment

Returns

true if segments intersect

Definition at line 468 of file polygon.cpp.

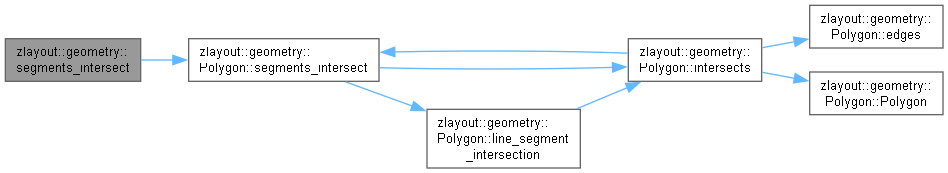

Here is the call graph for this function:

Variable Documentation

HAS_NUMPY

bool zlayout.geometry.HAS_NUMPY = True

Definition at line 11 of file geometry.py.
