polygon.hpp File Reference

Polygon class for complex geometric shapes and EDA components. More...

#include <zlayout/geometry/point.hpp>
#include <zlayout/geometry/rectangle.hpp>
#include <vector>
#include <string>
#include <utility>

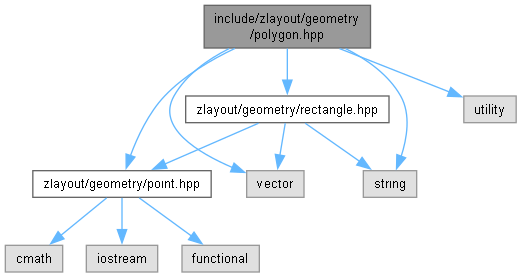

Include dependency graph for polygon.hpp:

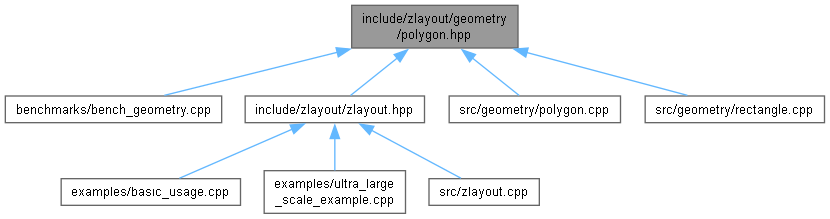

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	zlayout::geometry::Polygon
	Polygon class supporting both convex and concave polygons. More...
struct	zlayout::geometry::PolygonHash
	Hash function for Polygon (for use in std::unordered_map, etc.) More...

Namespaces
namespace	zlayout
	Main namespace for ZLayout library.
namespace	zlayout::geometry

Functions
bool	zlayout::geometry::line_intersection (const Point &line1_start, const Point &line1_end, const Point &line2_start, const Point &line2_end, Point &intersection)
	Calculate intersection point of two infinite lines.
bool	zlayout::geometry::segments_intersect (const Point &seg1_start, const Point &seg1_end, const Point &seg2_start, const Point &seg2_end)
	Check if two line segments intersect.
double	zlayout::geometry::angle_between_vectors (const Point &v1, const Point &v2)
	Calculate angle between two vectors in degrees.

Detailed Description

Polygon class for complex geometric shapes and EDA components.

Definition in file polygon.hpp.
