zlayout::optimization::ForceDirectedPlacer Class Reference

Force-directed placement algorithm. More...

#include <layout_optimizer.hpp>

Public Member Functions
	ForceDirectedPlacer (const geometry::Rectangle &area)
void	add_component (Component *comp)
void	add_net (const Net &net)
bool	optimize (size_t max_iterations=1000)
	Run force-directed placement.

Detailed Description

Force-directed placement algorithm.

Models components as particles connected by springs (nets) and uses physical simulation to find optimal positions.

Definition at line 109 of file layout_optimizer.hpp.

Constructor & Destructor Documentation

ForceDirectedPlacer()

zlayout::optimization::ForceDirectedPlacer::ForceDirectedPlacer ( const geometry::Rectangle & area )

inline

Definition at line 122 of file layout_optimizer.hpp.

Member Function Documentation

add_component()

void zlayout::optimization::ForceDirectedPlacer::add_component ( Component * comp )

inline

Definition at line 124 of file layout_optimizer.hpp.

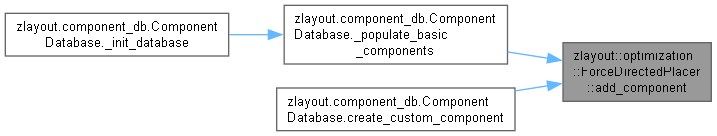

Here is the caller graph for this function:

add_net()

void zlayout::optimization::ForceDirectedPlacer::add_net ( const Net & net )

inline

Definition at line 125 of file layout_optimizer.hpp.

optimize()

bool zlayout::optimization::ForceDirectedPlacer::optimize

(

size_t

max_iterations = 1000

)

Run force-directed placement.

Definition at line 355 of file layout_optimizer.cpp.

---

The documentation for this class was generated from the following files:

• include/zlayout/optimization/layout_optimizer.hpp
• src/optimization/layout_optimizer.cpp
